PRODUCT DESCRIPTION

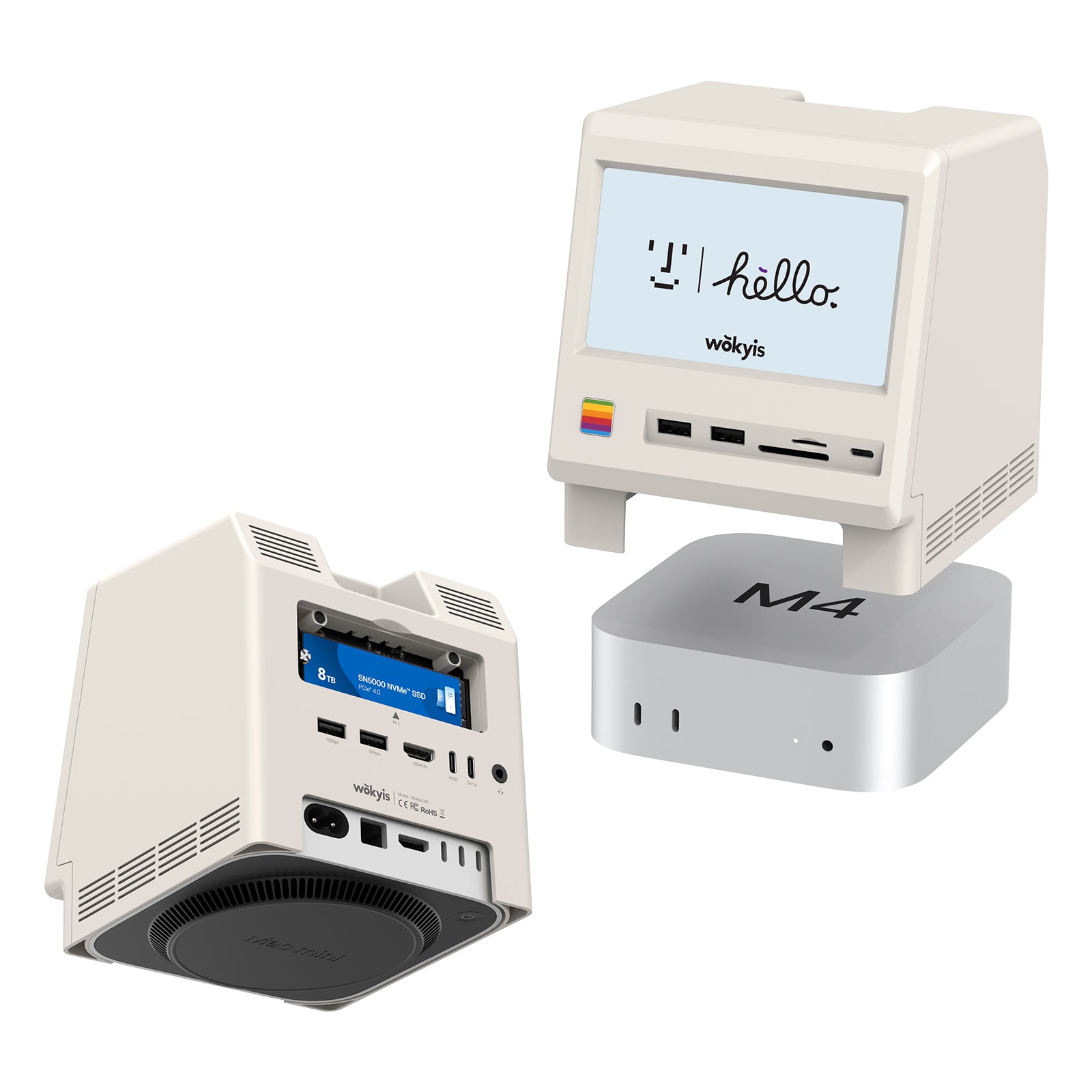

Retro Docking Station for Mac mini M4 with 5-inch Full HD Monitor and 10Gbps M.2 NVMe PCIe SSD Enclosure
About this item:
- It is compatible with Mac mini M4 and M4 Pro. It is also compatible with Mac mini M1/M2 chip series, other Macs and other Windows computers with Thunderbolt 5/4/3 ports or USB4 port.
- It is NOT compatible with computers that have Thunderbolt 2 ports or USB 3.2/3.0/2.0 ports.
- It is now available for purchase and is expected to ship in 3 days.

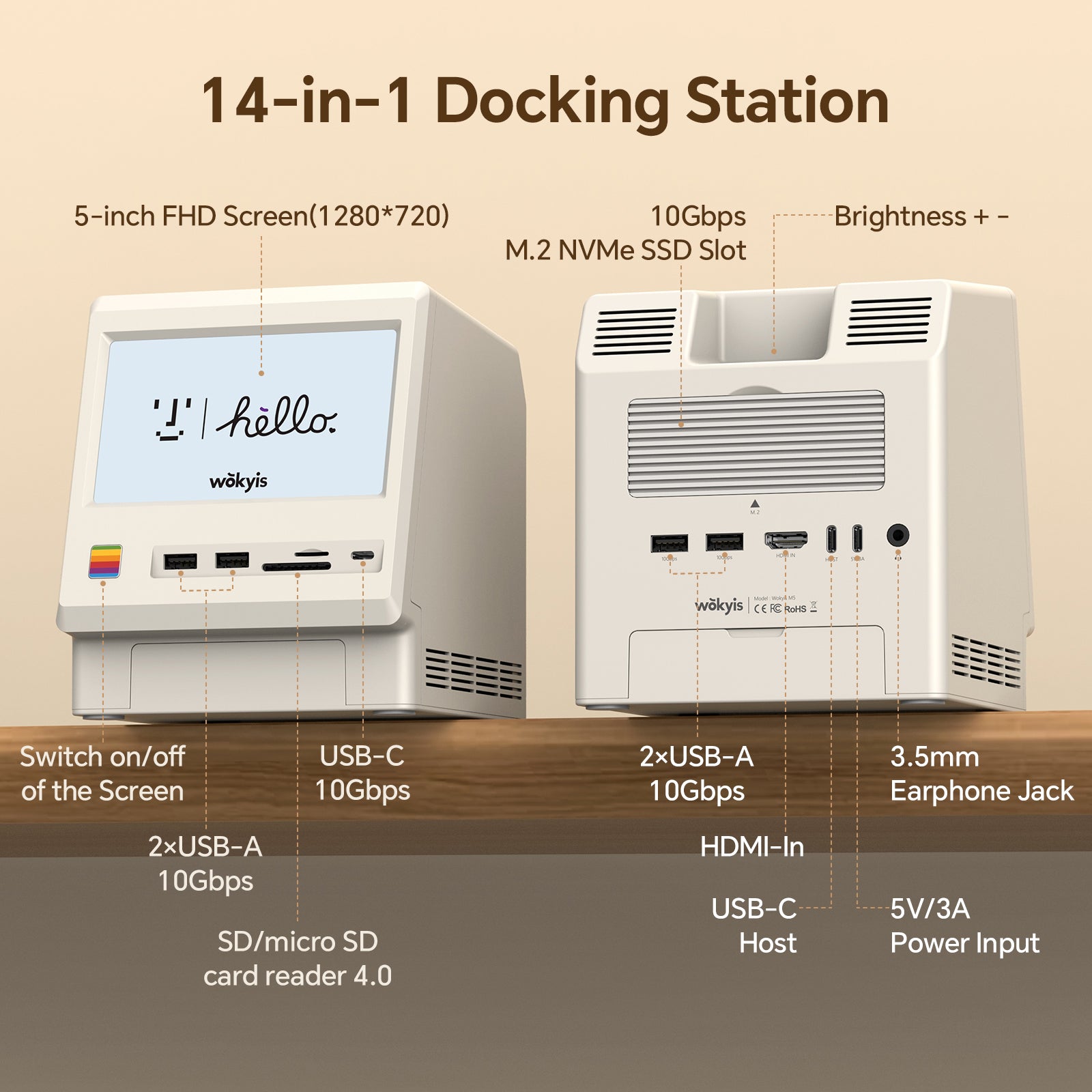

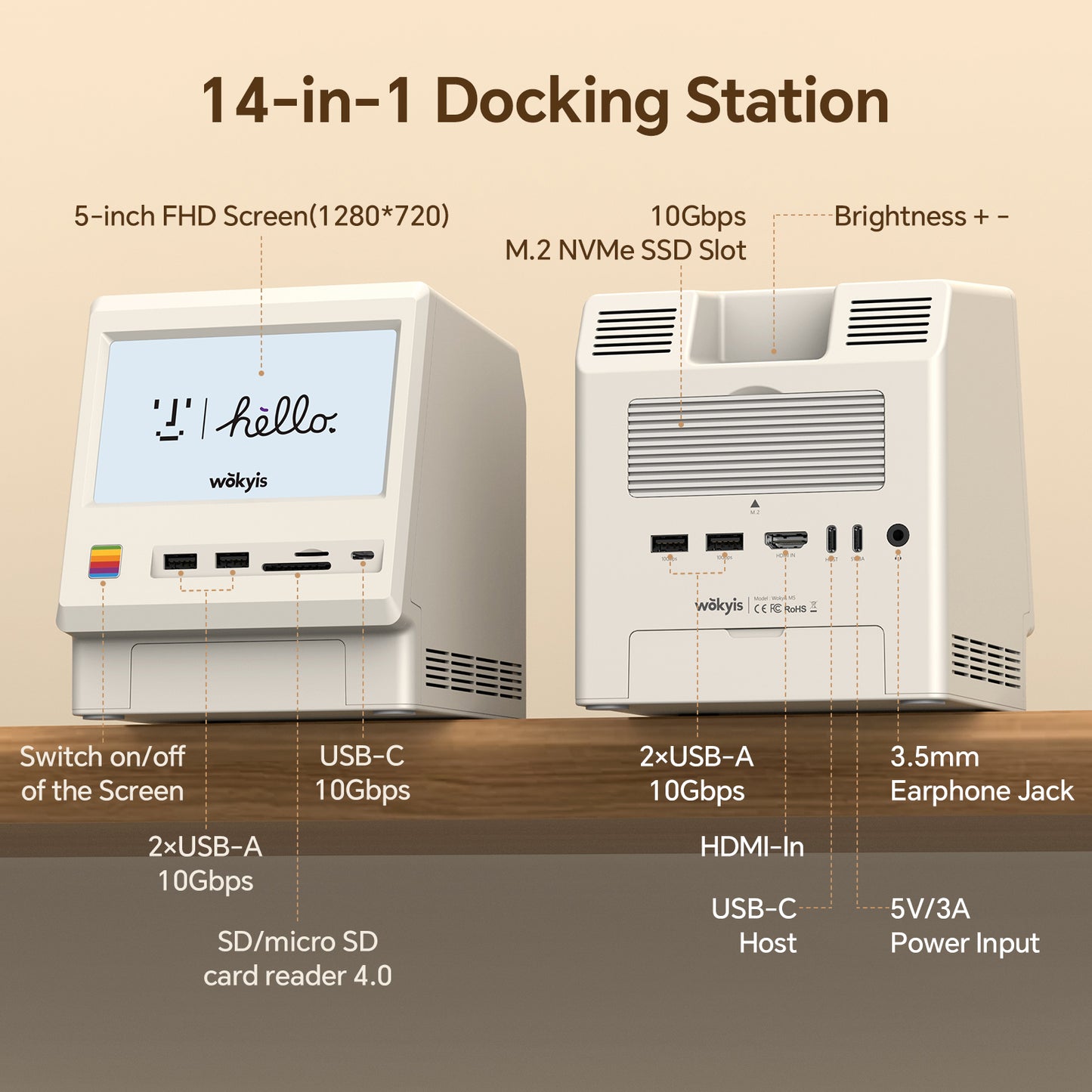

Technical Specifications:
- Power Button: switch on/off of the 5-inch screen
-

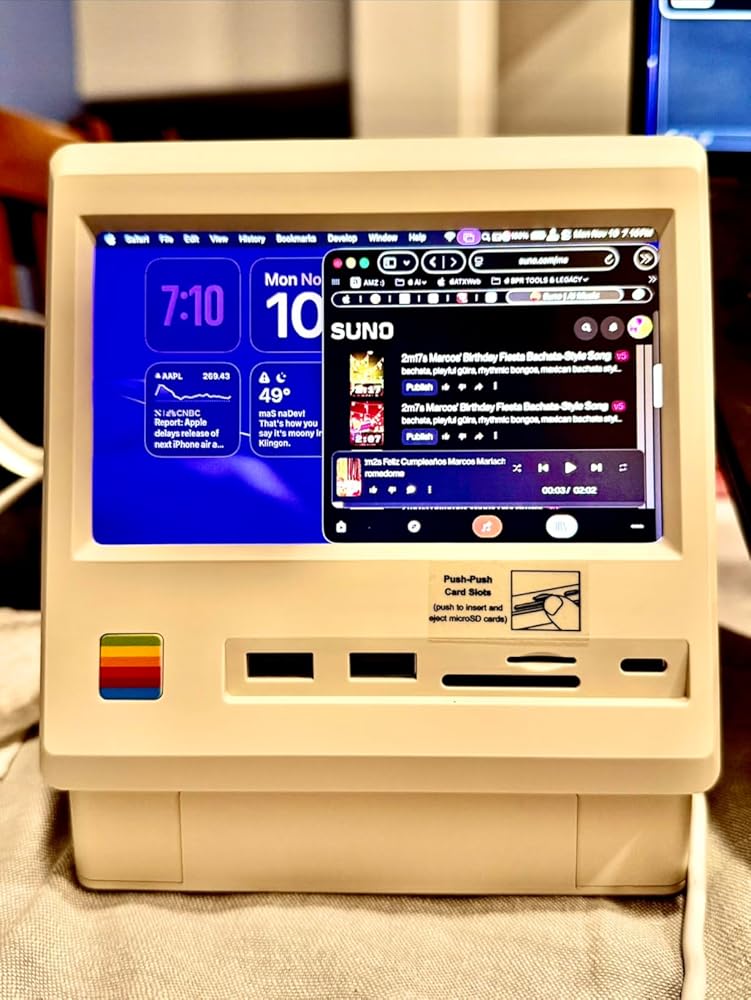

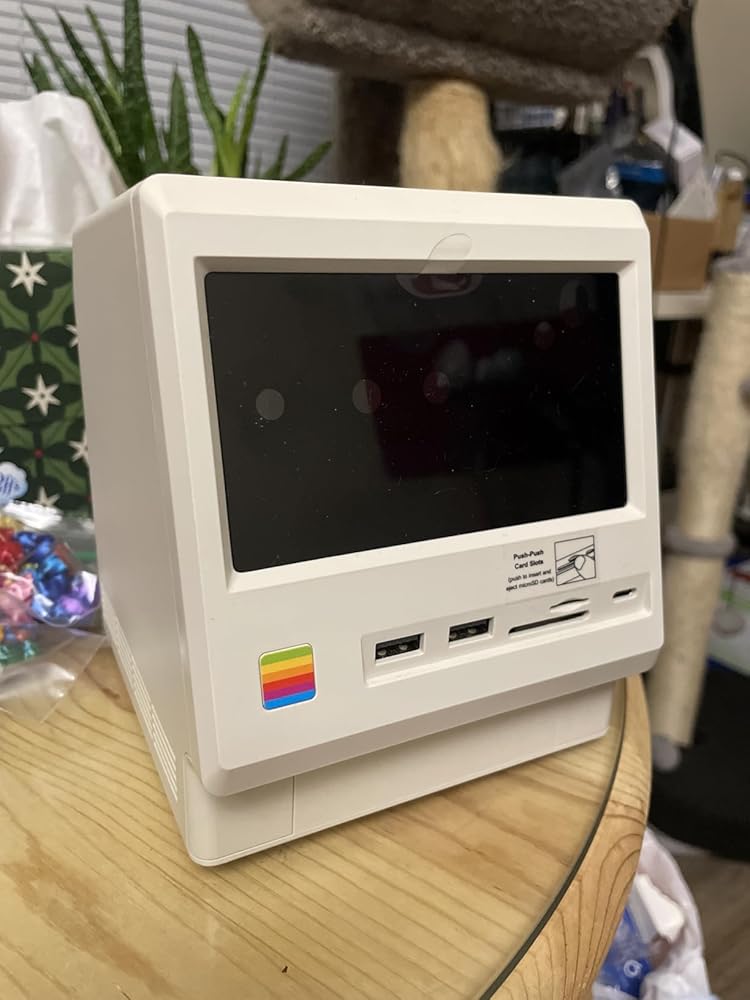

5-inch Monitor: full HD display, resolution up to 1280*720p, IPS

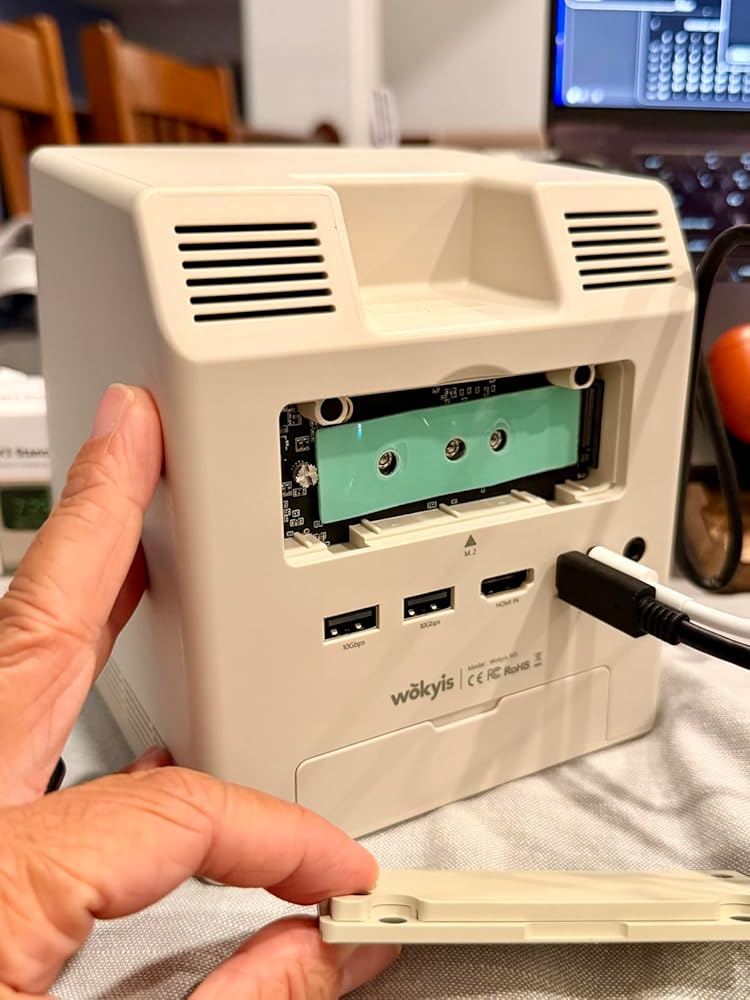

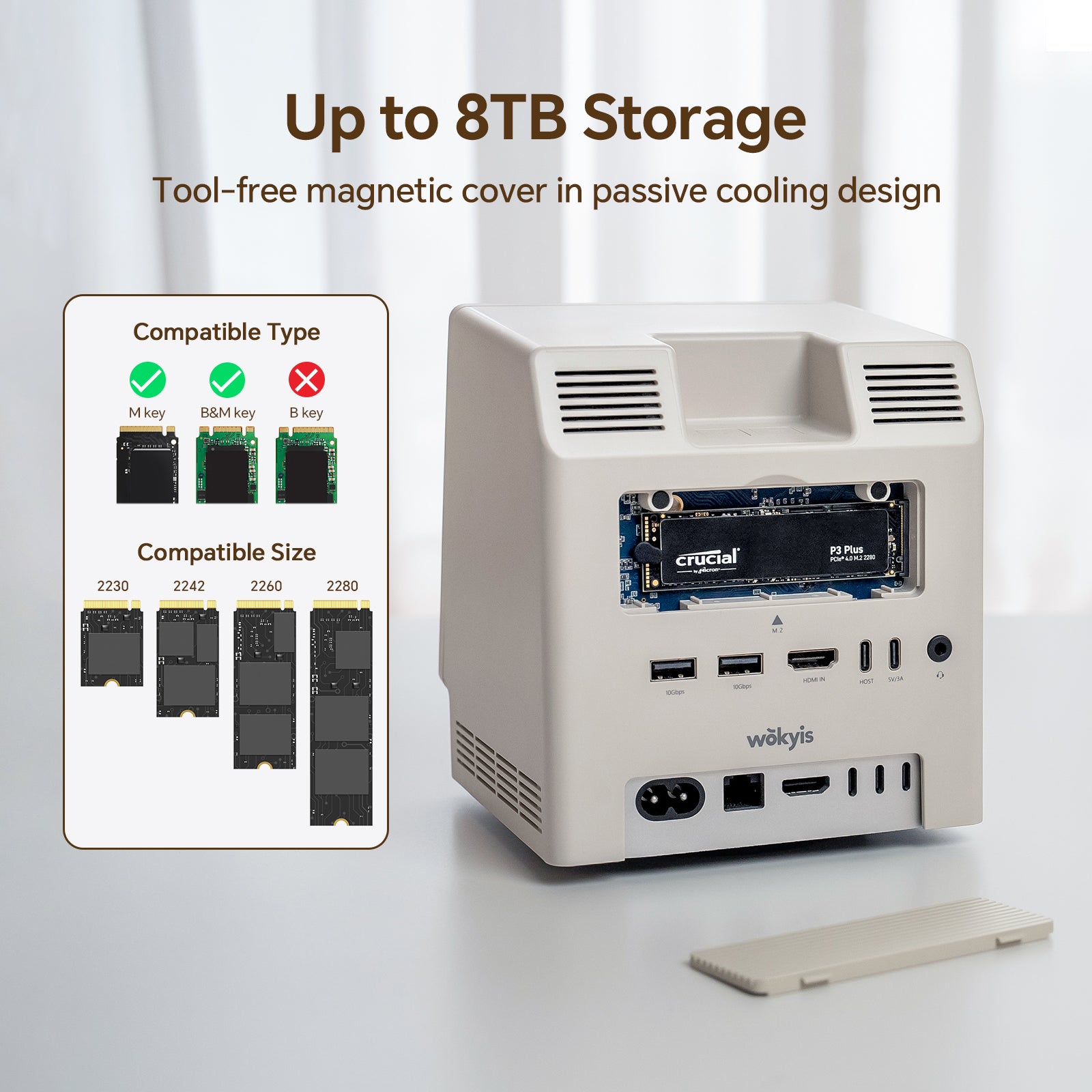

- M.2 SSD Slot: supports 2230/2242/2260/2280, NVMe, PCIe 4.0 and 5.0, capacity up to 8TB, speeds up to 10Gbps
- SD/micro Card Readers: SD4.0 UHS-ll 312MB/s, SD and microSD card readers can be used simultaneously

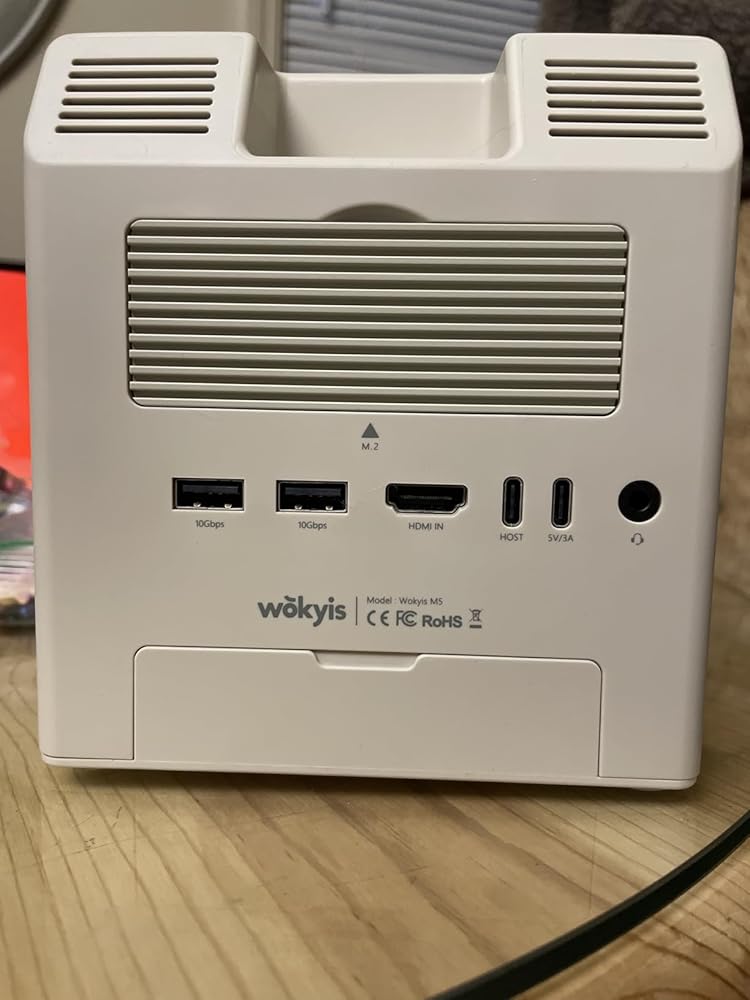

- 4x USB-A Ports: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah
- 1x USB-C Port: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah

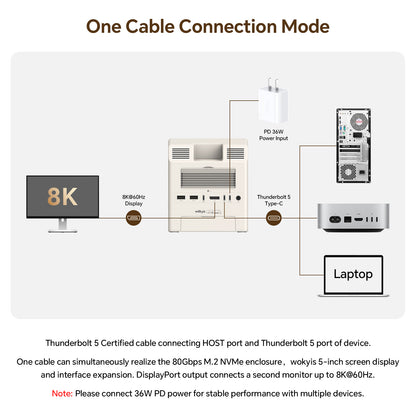

- 1x USB-C Host: connect to Mac mini M4/M4 Pro
- 1x USB-C Port: connect to external power supply when needed, 5V/3A power in
- 1x Audio Port: 3.5mm earphone jack, USB 2.0, 8K-384K support 32bit input and output
-
1x HDMI Port: HDMi-in only

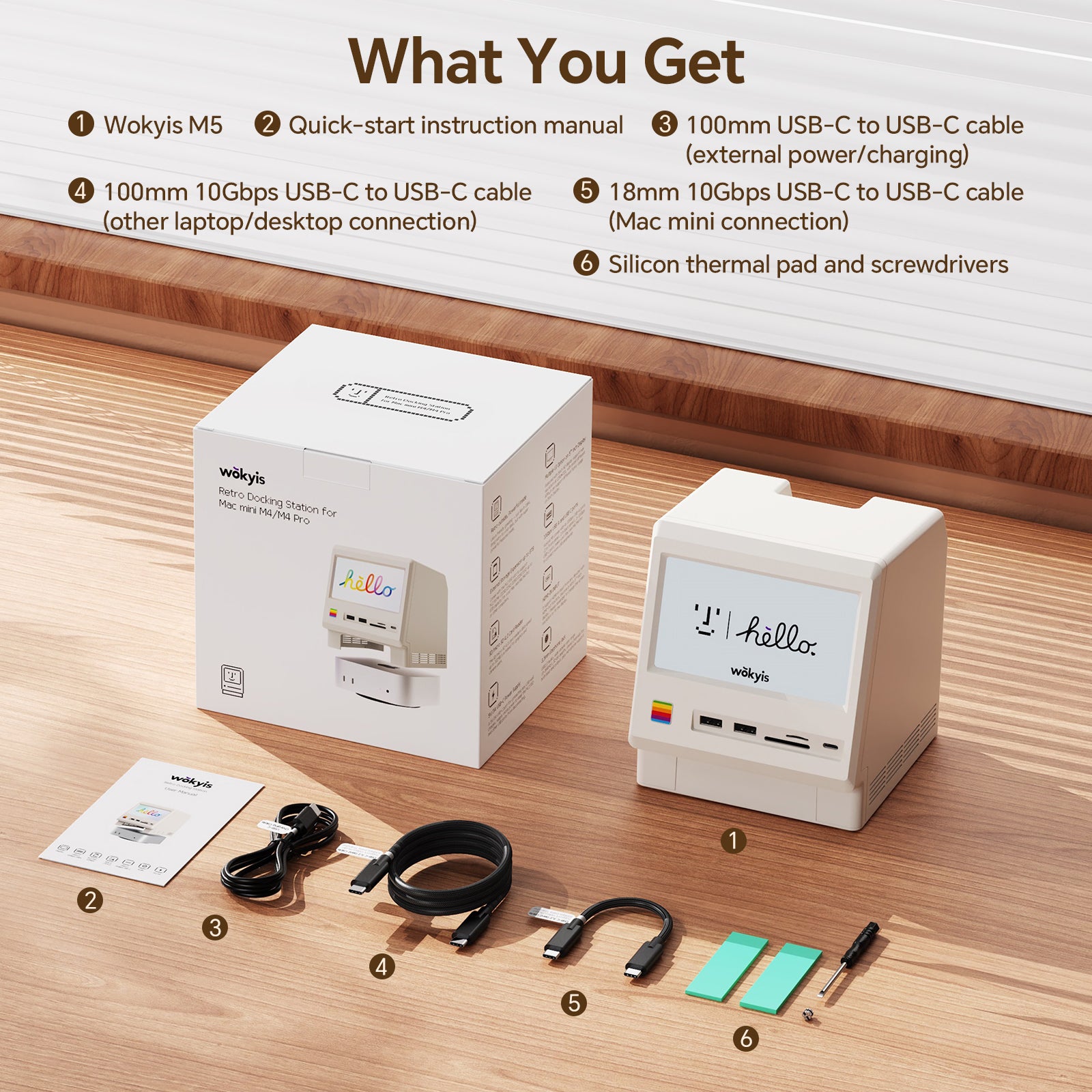

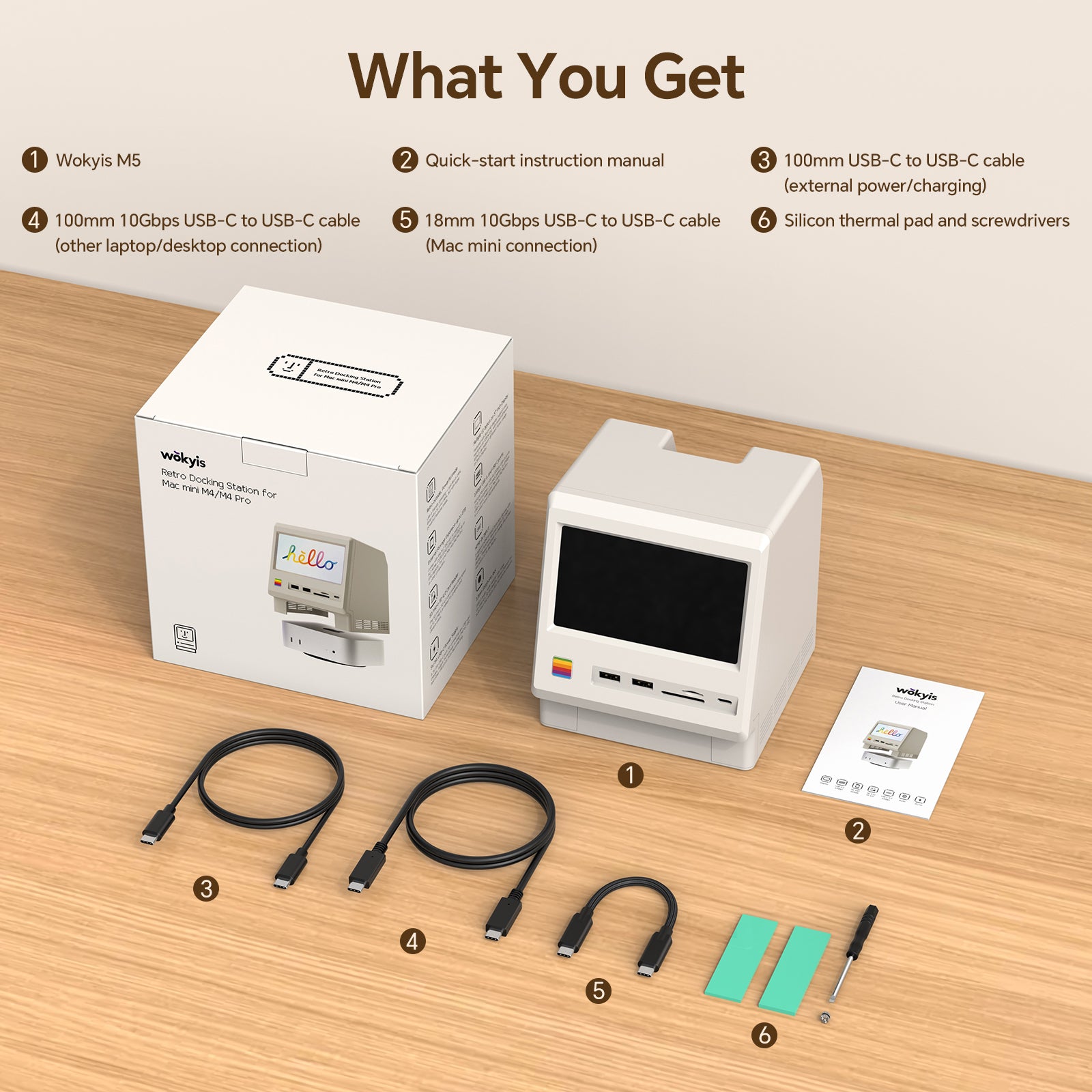

Accessories:
- 1x USB-C cable: connect to Mac mini M4/M4 Pro, 18mm, USB 3.2 Gen2 10Gbps
-
1x USB-C cable: connect to other Macs or Windows computers with Thunderbolt 5/4/3 ports or USB4 port, 1meter, USB 3.2 Gen2 10Gbps
-
1x USB-C cable: connect to external power supply when needed, 5V/3A power in

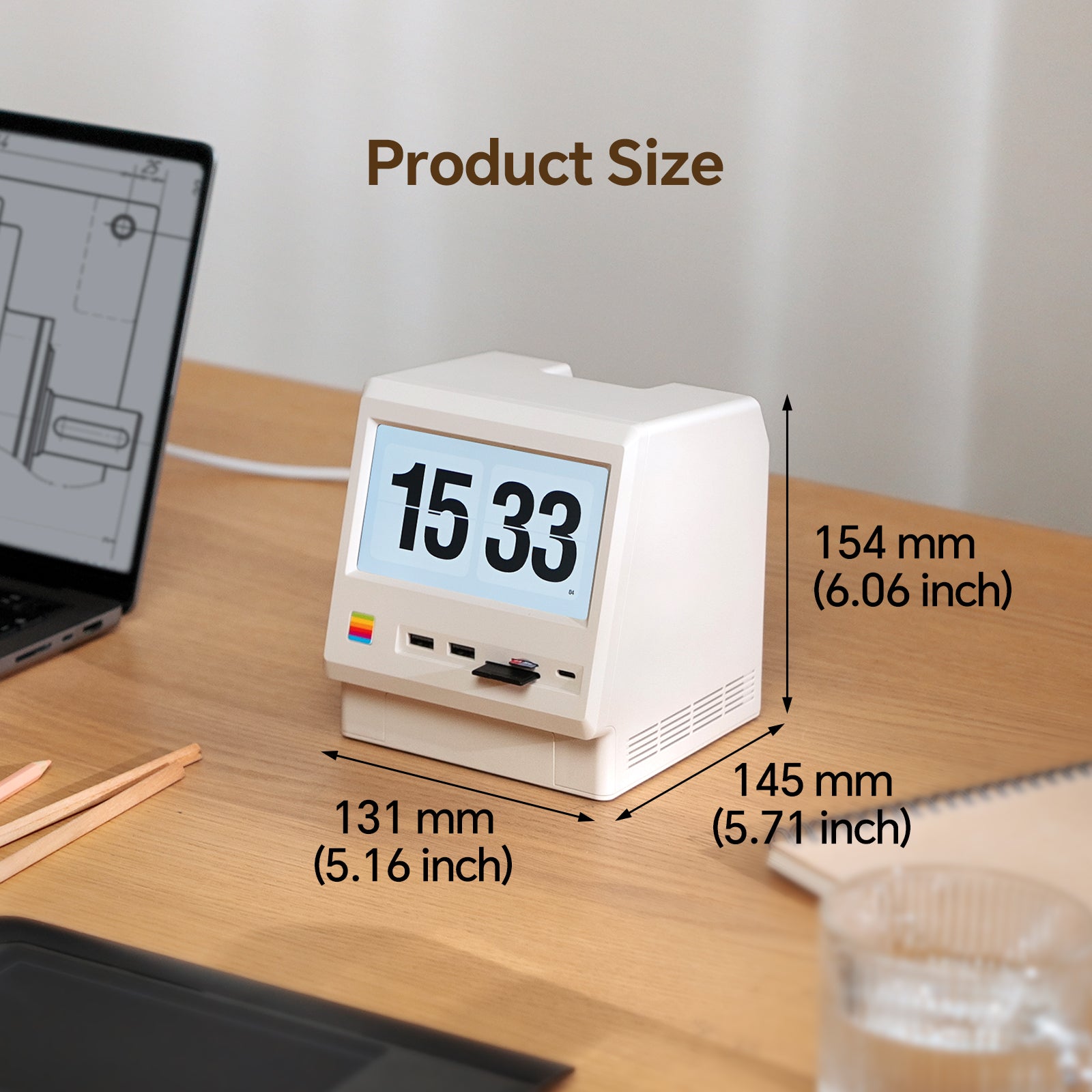

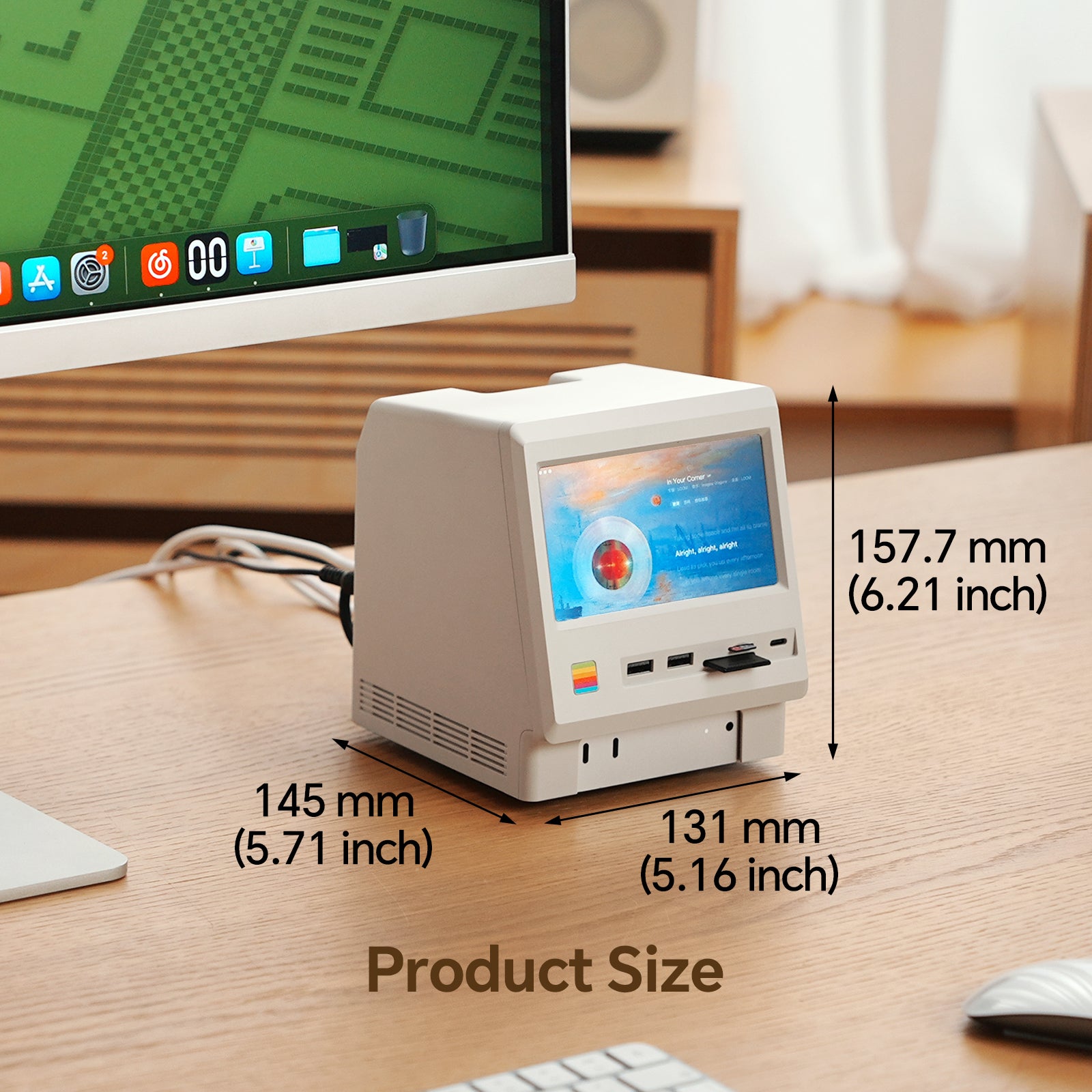

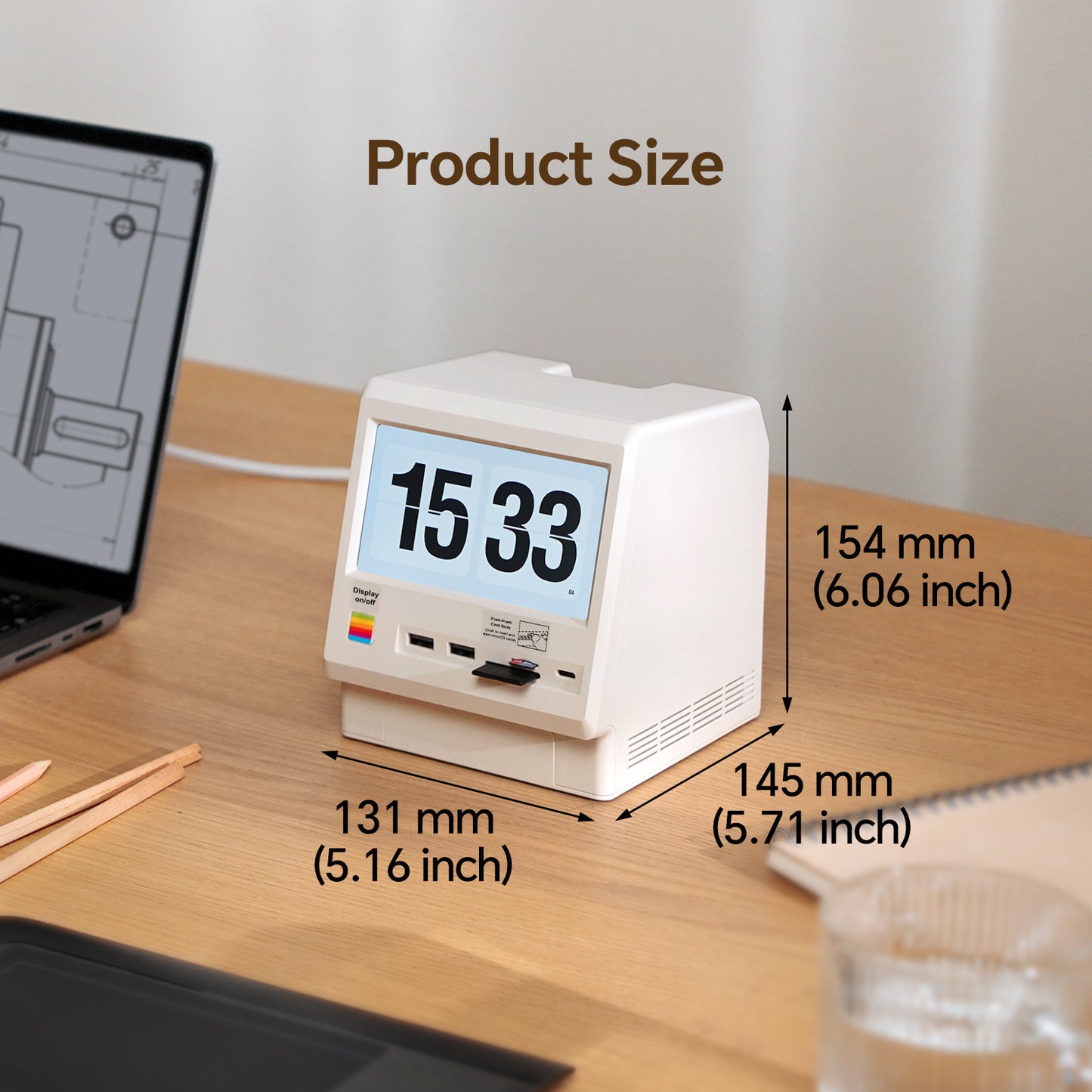

Dimensions:
- 145*131*154mm, 5.71*5.16*2.13inches
Weight:
- 510g, 1.12Ibs, 17.99oz
Materials:
- Plastic (main body)
- Aluminum (SSD cover)

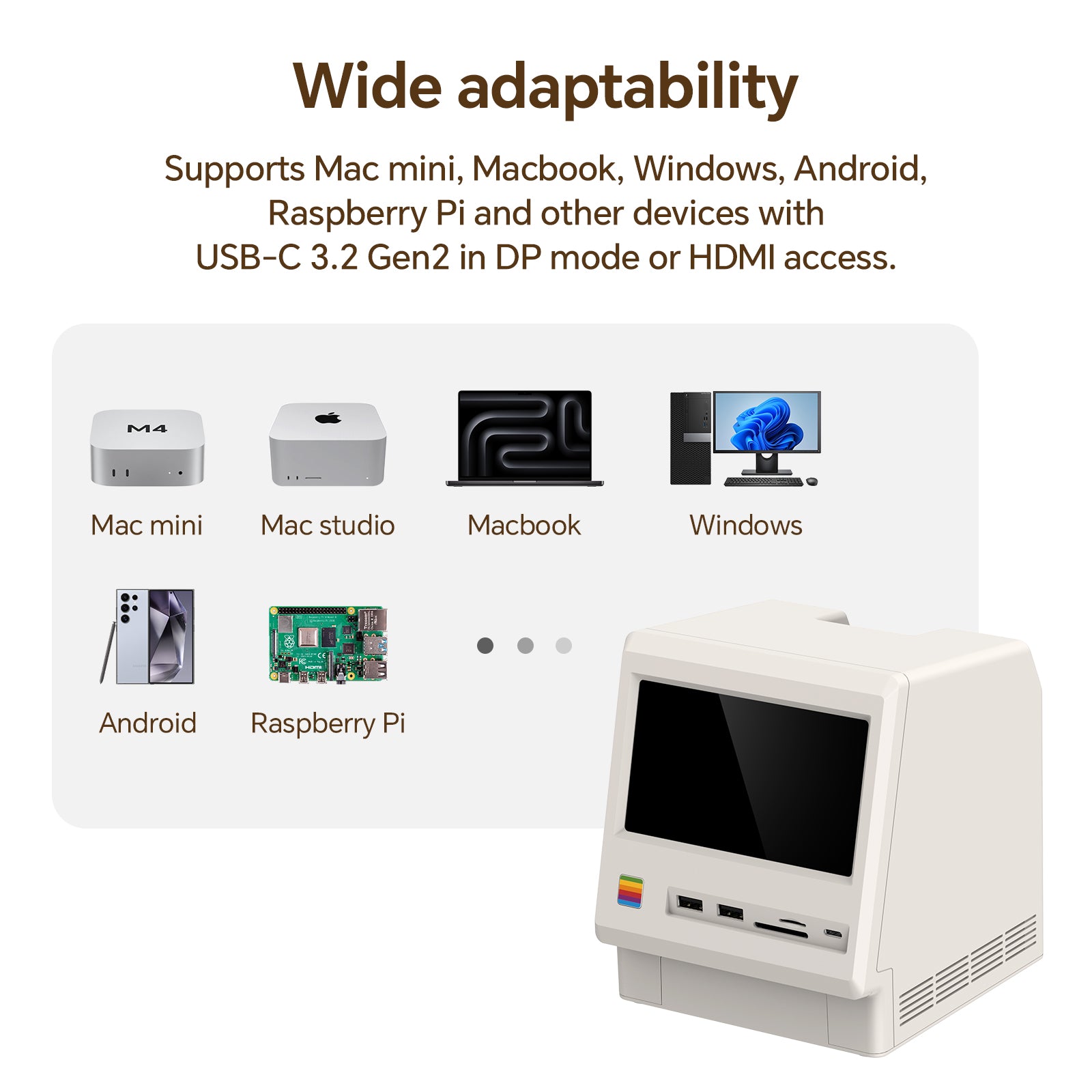

Compatibility:
- Mac mini M4/M4 Pro, Mac mini M1/M2 chip series
- MacBook Air M4, MacBook Pro M5, MacBook Pro M4/M4 Pro/M4 Max
- Other Macs and Windows computers with Thunderbolt 5/4/3 ports or USB4 port
Recommended PCIe Gen 4 (4.0) and Gen 5 (5.0) NVMe SSD (to be updated):
- acer: Predator GM7/GM7000, FA100/FA200
- Corsair: MP600 Elite/MP600 CORE XT/MP600 PRO NH, MP700 Elite/MP700 PRO
- Crucial: P510/P310, P5/P5 Plus, P3/P3 Plus, P2/P2 Plus, T500/T705/T710
- Fikwot: FN950/FN955, FX910/FX991
- Lexar: NM710/NM760/NM790, NQ710/NQ760/NQ780/NQ790
- Inland: TN450, TN470
- Kingston: NV3, NV2, NV1, DC1000B, KC3000, A400
- KLEVV: CRAS C910
- ORICO: e7400, O7000/OG7000, IG740PRO
- PNY: CS1030/CS2230/CS2241/CS2150
- Samsung: 9100 Pro/990 Pro/990 EVO/990 EVO Plus, 980 Pro/980, 970 Pro/970 EVO/970 EVO Plus/970
- Seagate: BarraCuda Q5/510, FireCuda 520/510, IronWolf 525, ZP1000GP3A1011/ZP2000GP3A1001
- SK Hynix: Platinum P51/P41, Gold P31
- Silicon Power: A60, UD90, US75
- TEAMGROUP: T-Force G50, MP44L, MP33/MP33 PRO, MS30
- Western Digital: Black SN8100/SN850X/SN850, Black SN7100/SN770/SN750, Blue SN5000, SN580/SN570/SN550, Green SN350, Red SN700
Share

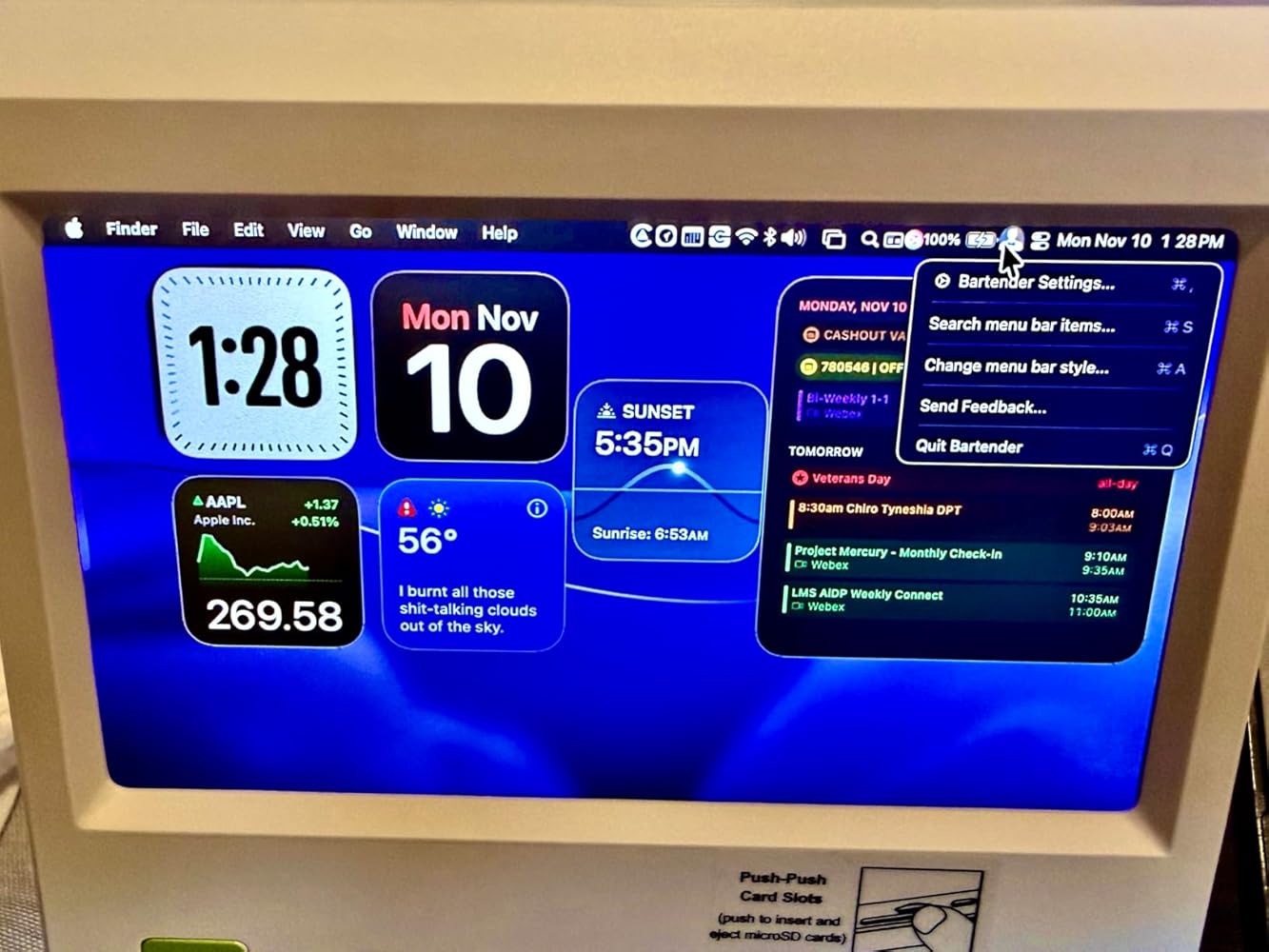

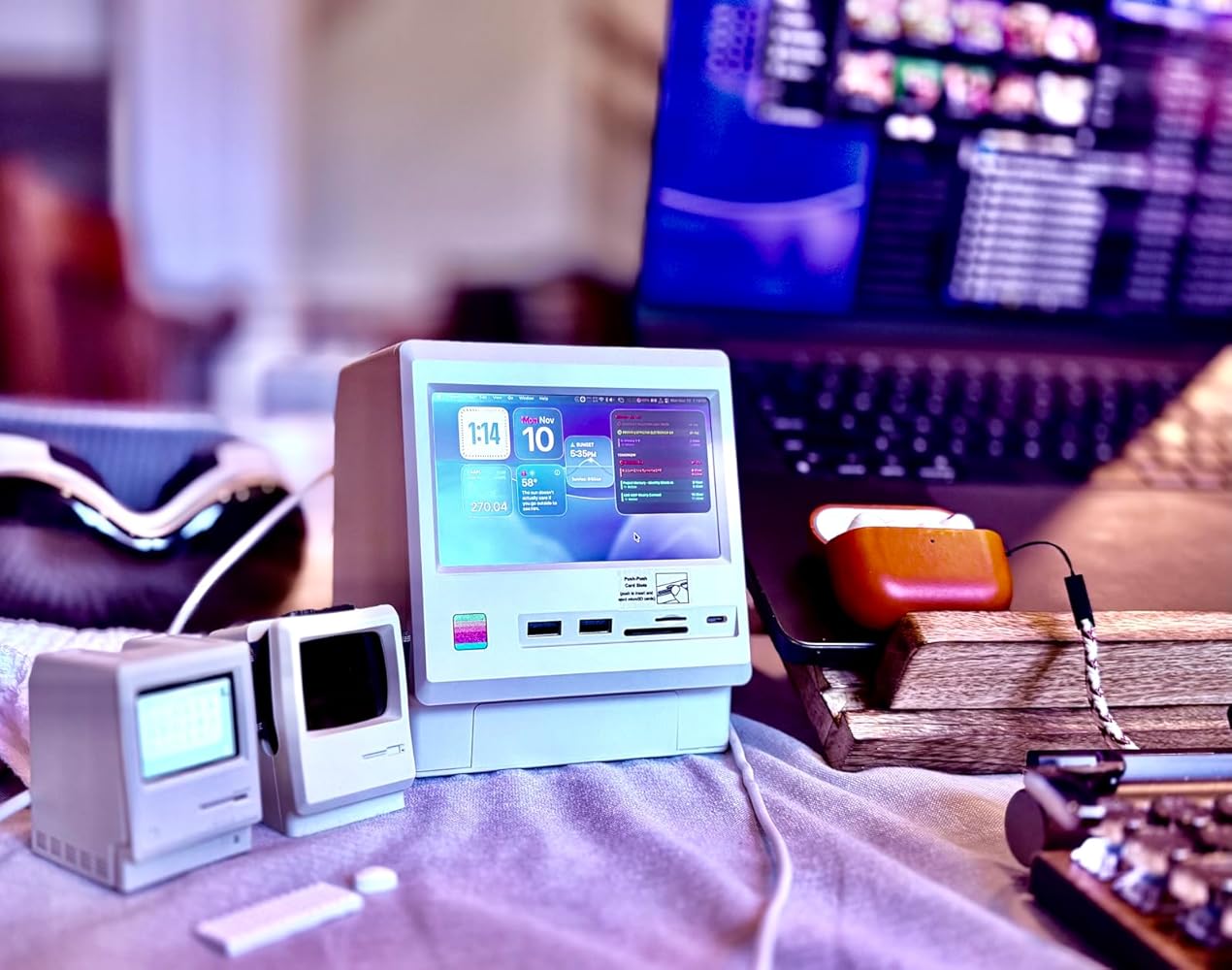

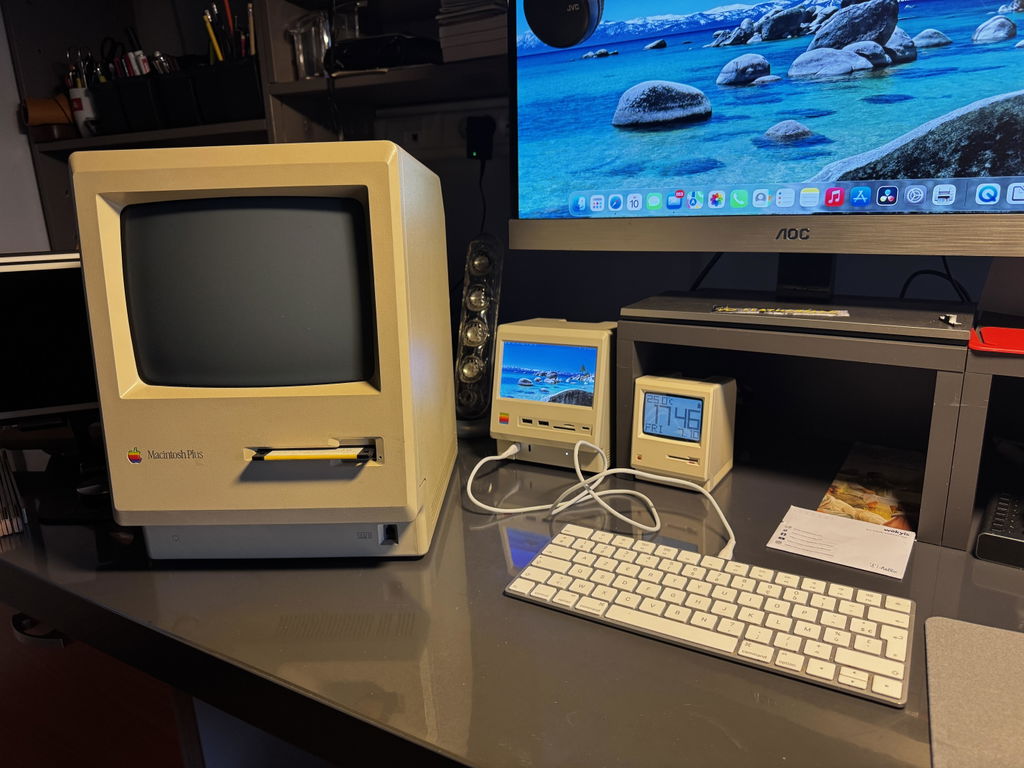

I had to have it!! And it has a screen that works (I keep my calendar on it, if bored, a slide show from my photos . The connections great and I will probably add an NvME drive at some point in the future. get one. They are cool!!!

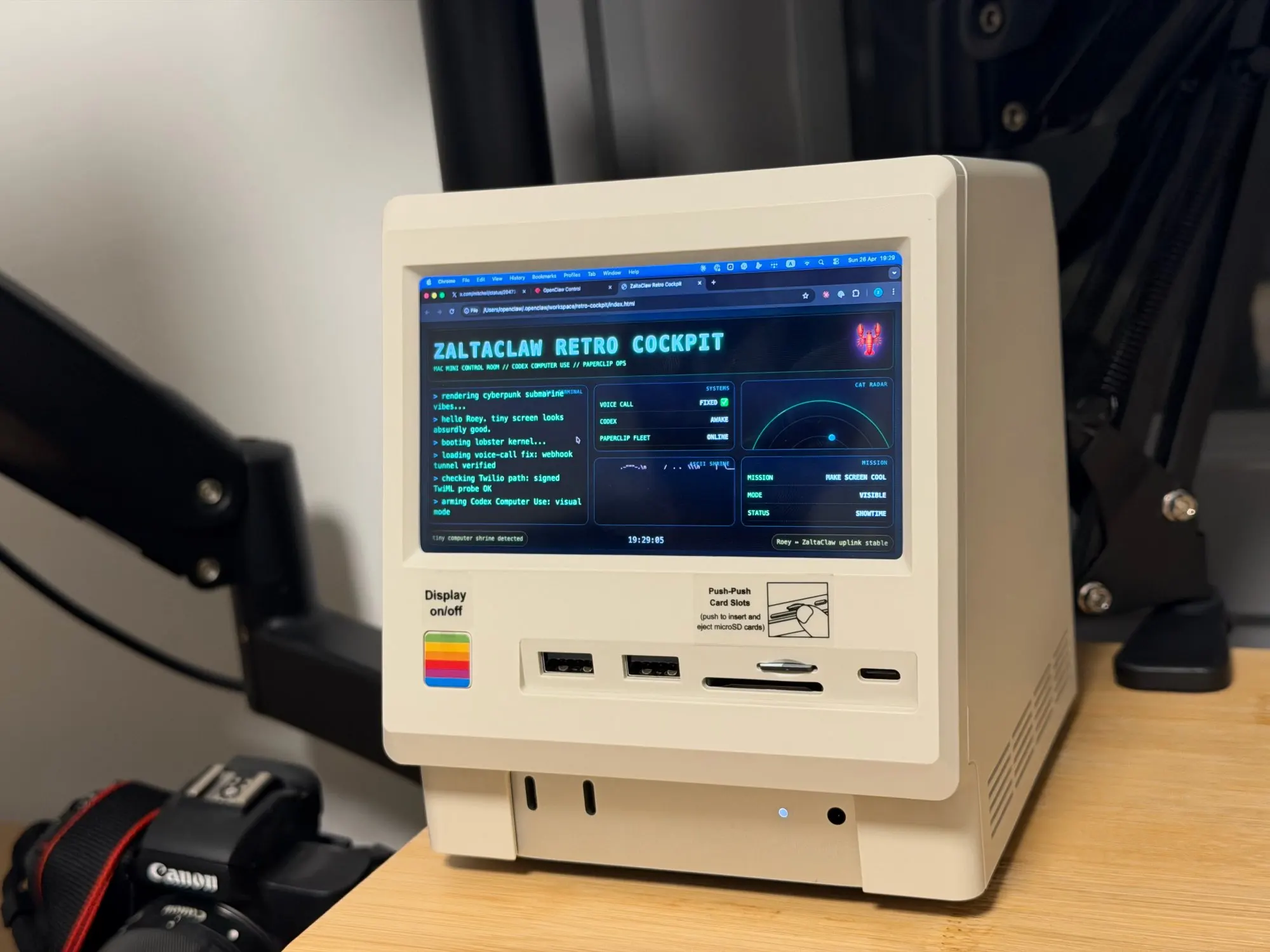

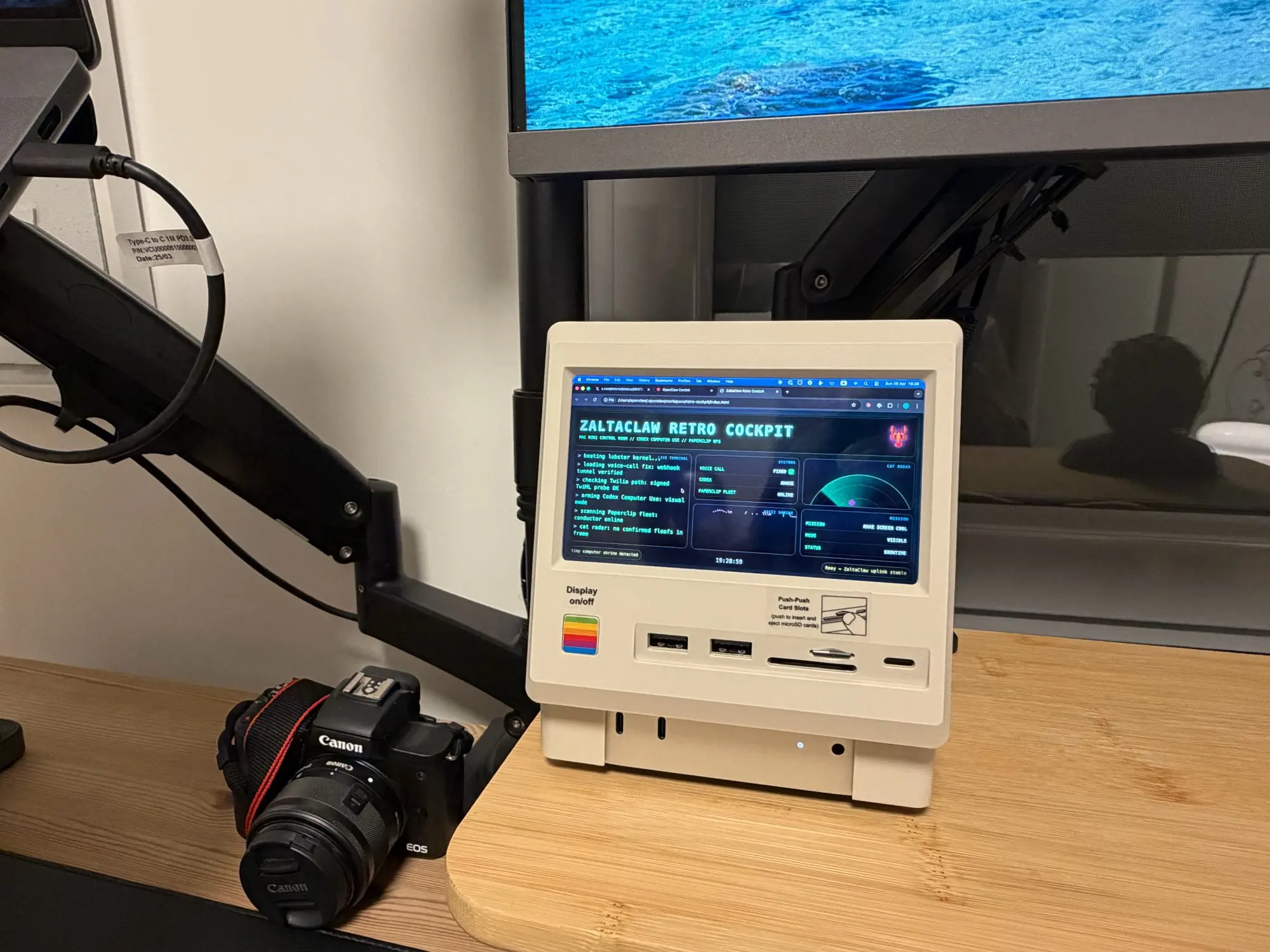

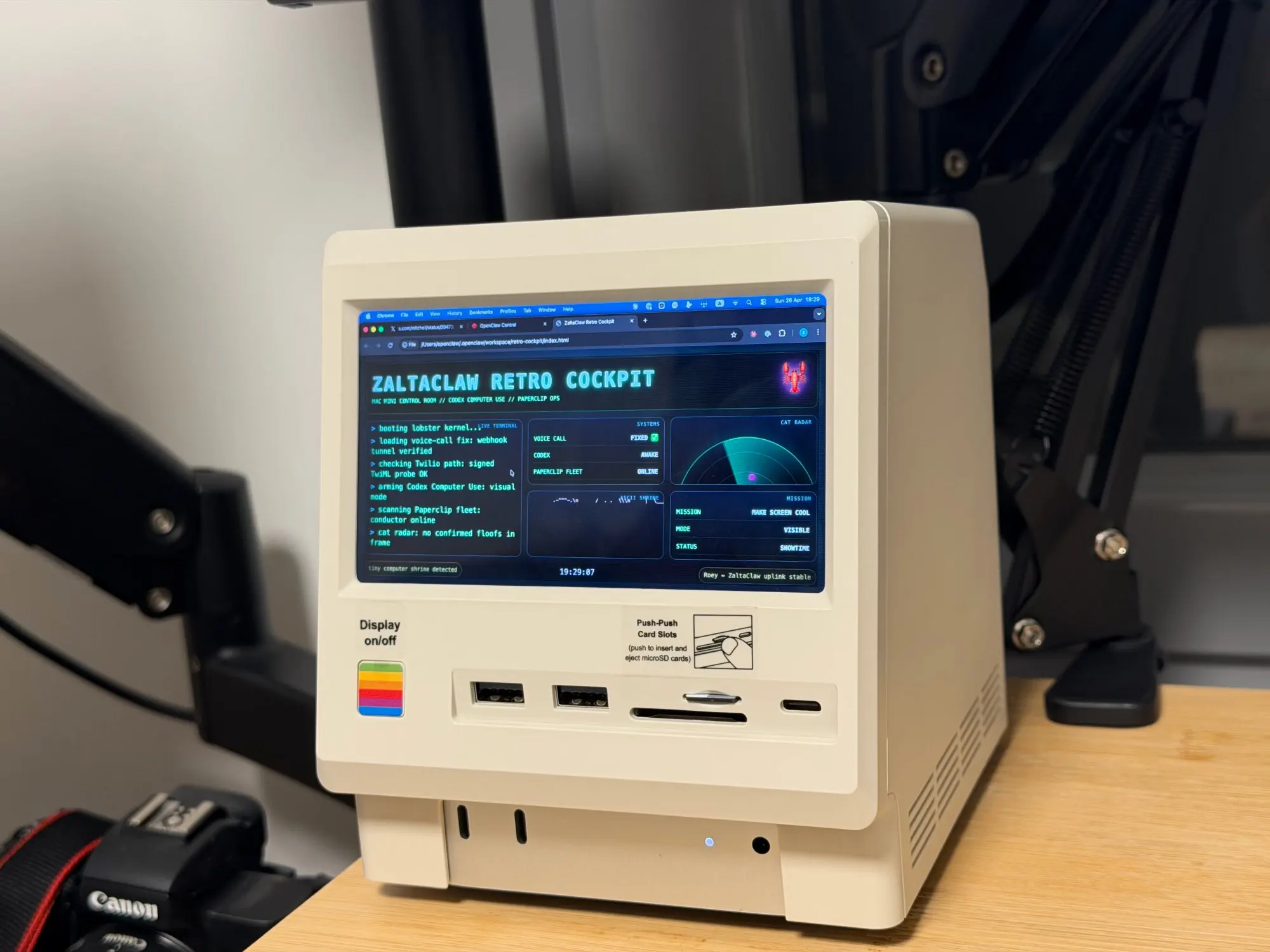

This thing is honestly adorable and way more useful than I thought it'd be! Got it for my M4 mac mini and the retro Mac Plus look just makes me smile everytime I walk by my desk. The little 5" screen is perfect for keeping an eye on temps and stuff without opening Activity Monitor constantly. Threw in a 2TB NVMe drive and it works flawlessly - those 10Gbps speeds are no joke for file transfers. All the extra USB ports are clutch too since the mini is so stingy with them. Only minor gripe is its a bit pricey but honestly? Worth it for the nostolgia factor alone, plus it actualy solves real problems. Makes my setup feel complete.
This retro dock is way cooler in person than I expected. It looks like a tiny vintage computer, but it’s actually a fully functional hub loaded with useful ports. The little screen gives it such a nostalgic vibe — it instantly makes your setup look more creative and unique.What I love most: • Tons of ports. SD/micro SD reader, multiple USB-A ports, fast USB-C, and even a headphone jack. Everything is easily accessible from the front, which makes it perfect for quick swaps. • Extra storage. The M.2 NVMe slot in the back is actually really convenient. You can expand your storage without needing a separate enclosure. • Aesthetic upgrade. It literally transforms your desk into a cute, retro-themed workspace. It’s a conversation starter for sure. • Sturdy + well-made. The plastic feels thick and durable, not cheap.Different ways this dock can be used: • Desk organizer hub: Plug your keyboard, mouse, webcam, SD cards, USB drives, headphones — everything routes through one cute mini “computer.” • Retro display piece: Even when you’re not using the ports, it looks adorable as a decorative desktop gadget. • Extra storage station: Pop an NVMe SSD inside and use it as fast external storage for backups, photos, or games. • Charging hub: The front ports make it super easy to plug in and charge small accessories (controllers, earbuds, phones, etc.). • Media center: Hook up speakers/headphones and run your Mac mini as a little retro-styled entertainment device.If you want something that not only works well but also gives your workspace personality, this is honestly perfect.
Great product with small extra display
The media could not be loaded.

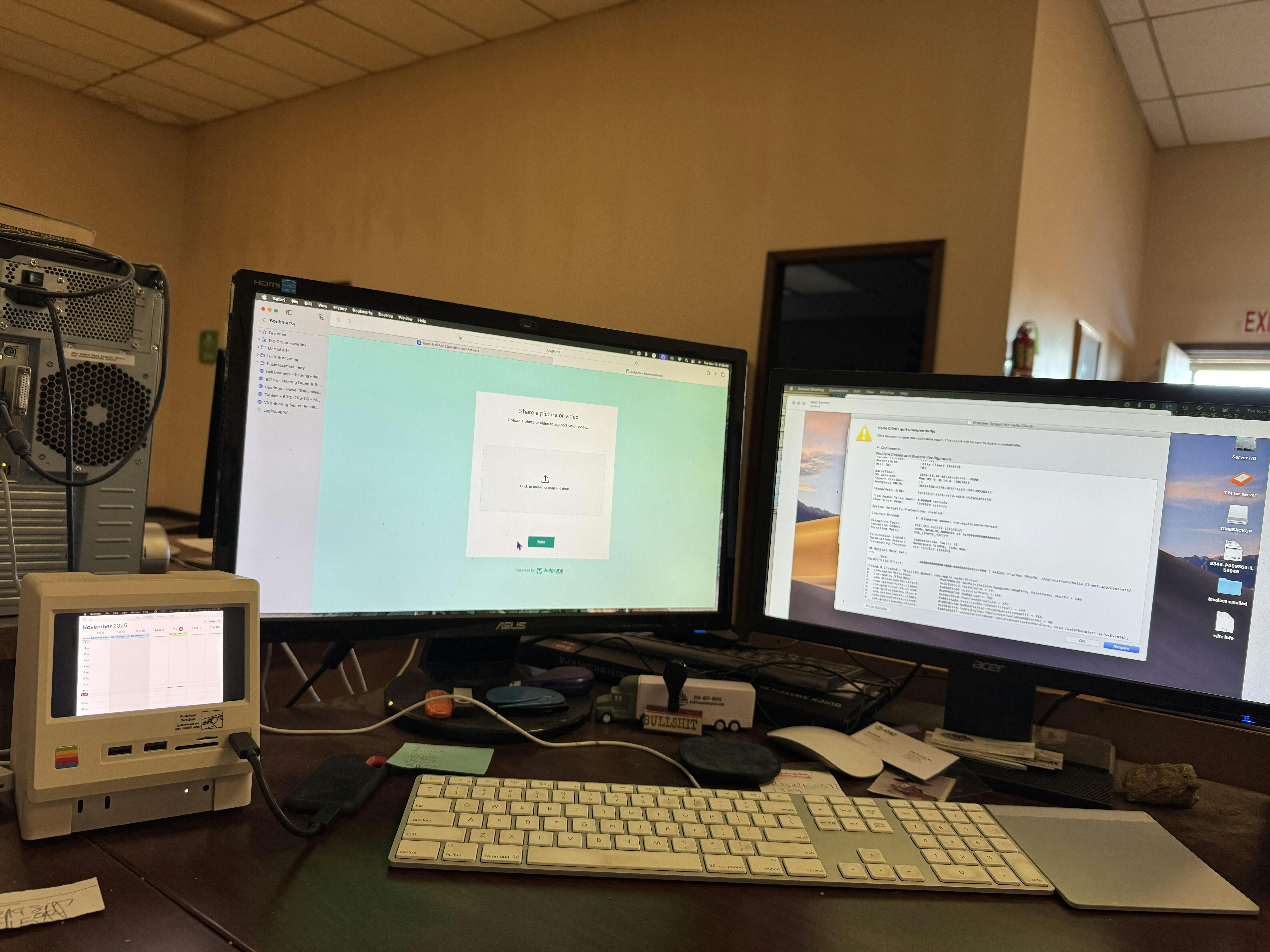

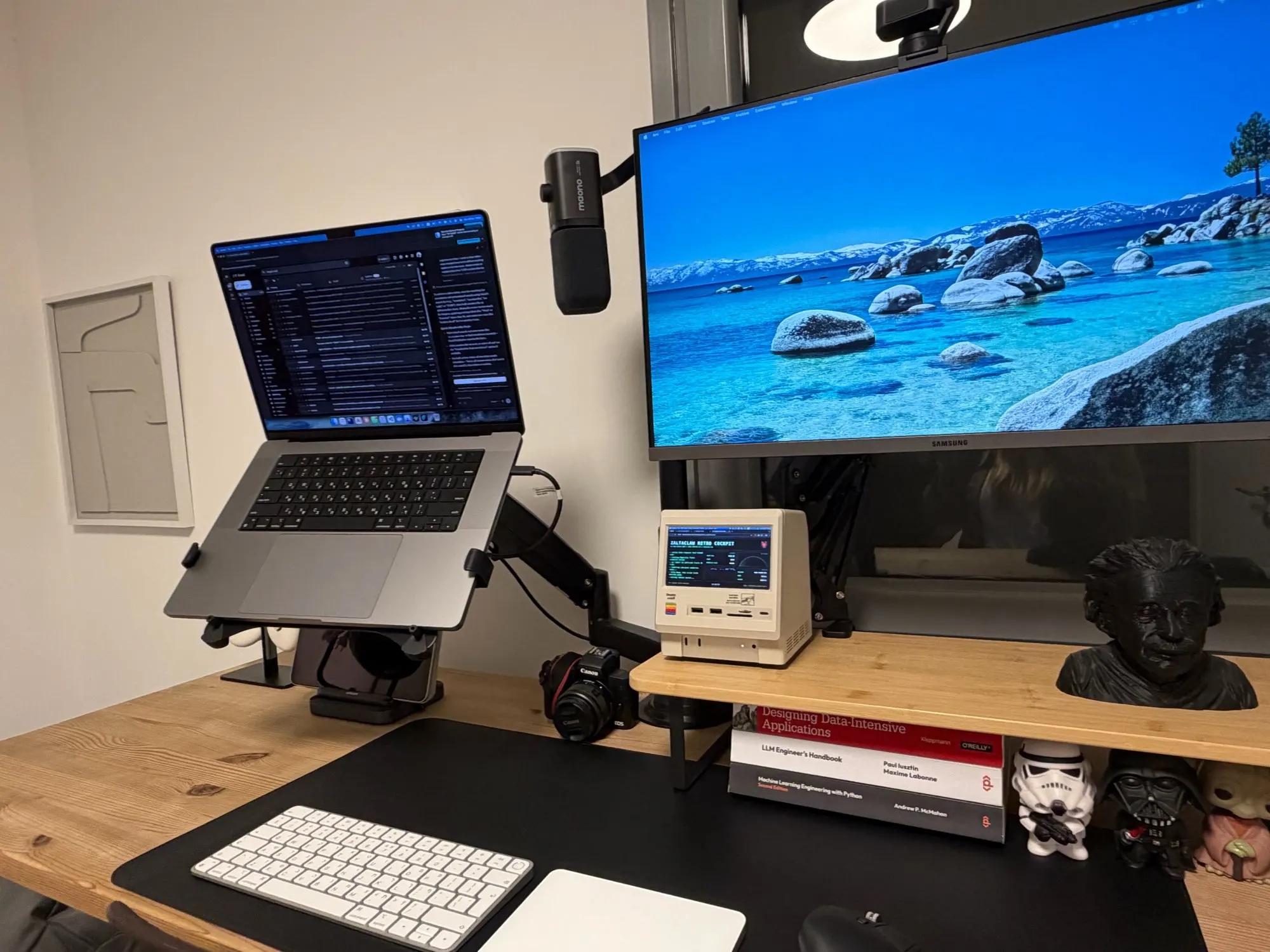

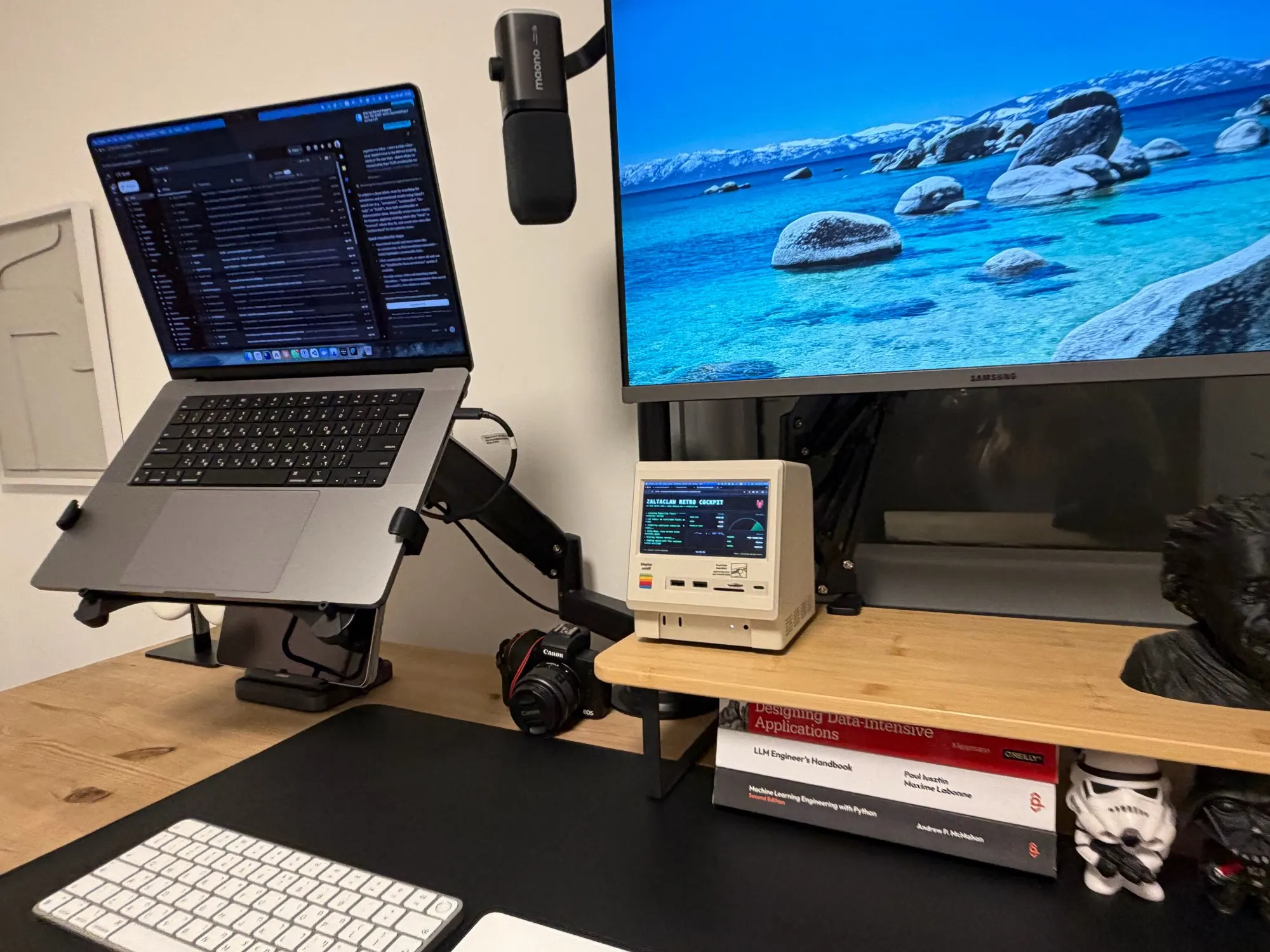

Fun way to wax nostalgic for the classic, original Macintosh design. You can use this as a docking station with a small usable extended display for your latest Mac Mini or even a MacBook Pro (my video demo's it connected to an MBP). Multiple USB-A and USB-C ports, HDMI, and a backpanel for inserting a solid state drive card.
Reviews in Other Languages
Ce petit dock rétro pour Mac Mini m’a vraiment surpris. J’aime beaucoup son look inspiré des vieux Macintosh, ça donne un côté nostalgique tout en restant moderne grâce à toutes les fonctionnalités intégrées. L’écran de 5 pouces est pratique pour jeter un œil rapide à des infos sans ouvrir une nouvelle fenêtre sur le grand écran. L’image est nette, et même si ce n’est pas un écran principal, il ajoute vraiment un plus au quotidien.Le fait qu’il fasse aussi office de hub 14-en-1 est super pratique : USB-A, USB-C ultra rapide, lecteurs de cartes, DisplayPort, HDMI… tout est là. On peut brancher presque n’importe quoi sans se poser de questions. Le boîtier SSD M.2 intégré est aussi un vrai atout. Pouvoir ajouter jusqu’à 8 To directement dans le dock, sans boîtes externes partout, c’est vraiment top, surtout pour ceux qui travaillent avec de gros fichiers.La possibilité de choisir entre une version USB-C 10 Gbps ou une version Thunderbolt 5 encore plus puissante est un bon point, même si la version TB5 sera surtout utile aux pros et risque de faire grimper le prix. Le concept de glisser son Mac mini directement dans la station d’accueil est super malin : ça réduit les câbles qui traînent et ça donne un bureau bien plus propre.

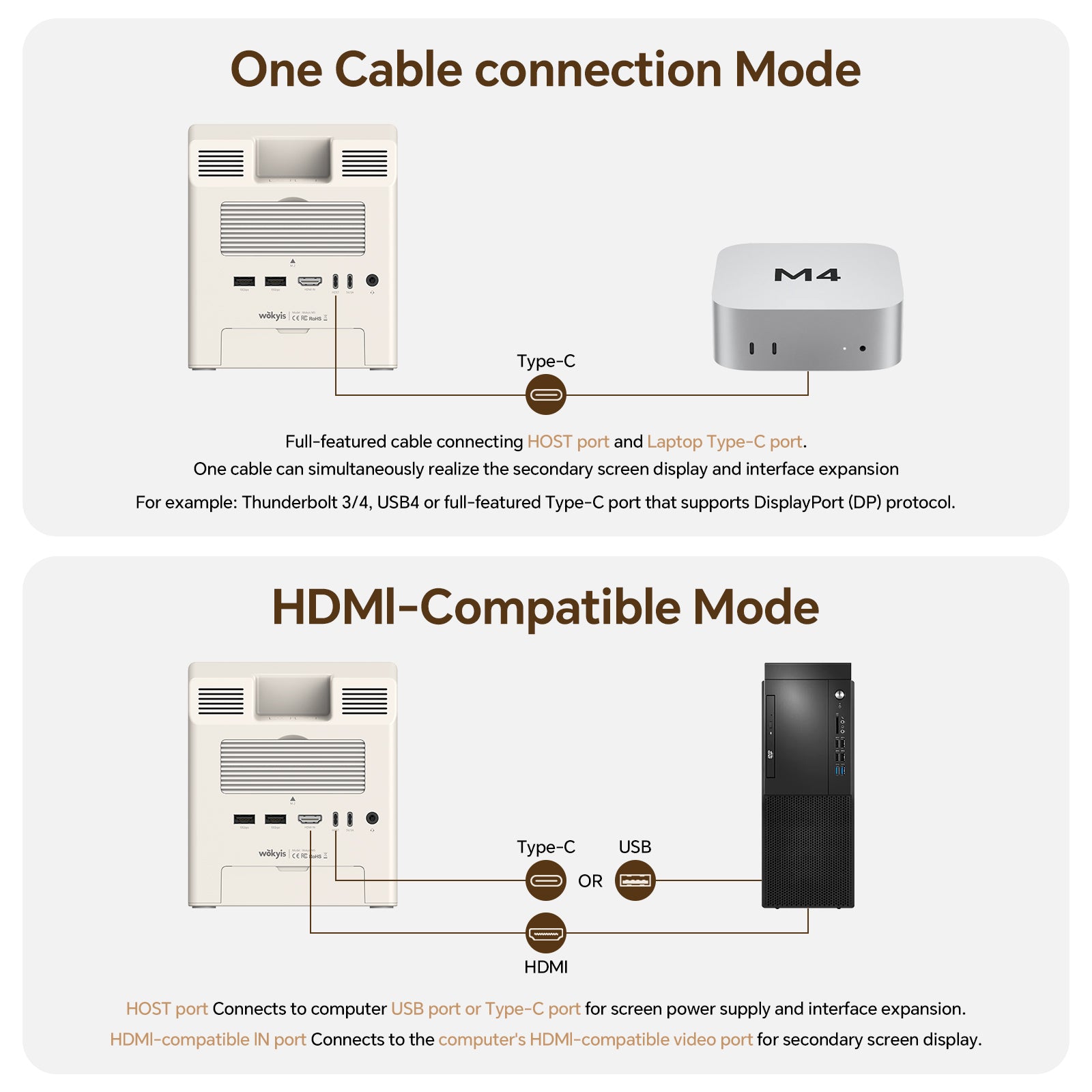

見た目重視のデスクトップガジェットです。1983年製 初代 Macintosh っぽいデザインで、50歳前後のエンジニアほいほいです。Mac mini M4 にピッタリサイズで、デザインとサイズ、これが最大の特長です。ここに Mac mini M4 を取り付けてみると、見た目が Macintosh っぽくなって、薄いベージュっぽい色合いもクラシック感を醸し出しています。一見、Mac mini M4専用商品のように見えるかもしれませんが、実際には 1280 x 720 解像度の LCDモニタが付いた USB-Cハブです。なので、Windowsパソコンや、ノートパソコンにもつけることができますよ。今は自宅の書斎に置いてますが、オフィスにも自席があったら、そこに置いておきたいかわゆいアイテムです。実用性としても、Macbook Air みたいなインターフェースの少ないパソコンにはピッタリです。ミラーレスの SDカードも読み取れるし、最大2280までの SSDも取り付けることができます。主な機能:<表面>1.5インチ 1280 x 720 ディスプレイを搭載2.USB-A 10Gbps3.USB-A 10Gbps4.USB-C 10Gbps5.SDカードリーダー6.MicroSDカードリーダー<裏面>7.10Gbps M.2 NVMe SSDスロット (2280)8.3.5mmイヤホンジャック9.USB-A 10Gbps10.USB-A 10Gbps接続モード:1.USB-C ディスプレイ出力対応モード 映像: USB-C からの Thunderbolt入力 給電: USB-C -- ACアダプタ (5V/3A以上を利用)2.HDMI互換モード 映像: HDMIケーブルでの映像入力 給電: USB-C -- ACアダプタ (5V/3A以上を利用)付属のケーブルにも USB-C の短いケーブルもあって、Mac mini M4にピッタリのキットになっています。
画面サイズが小さいが、Mac好きにはおいておくだけで満足
