Sale price$169.99Regular price $199.99

Model: M5 10Gbps

Compatibility

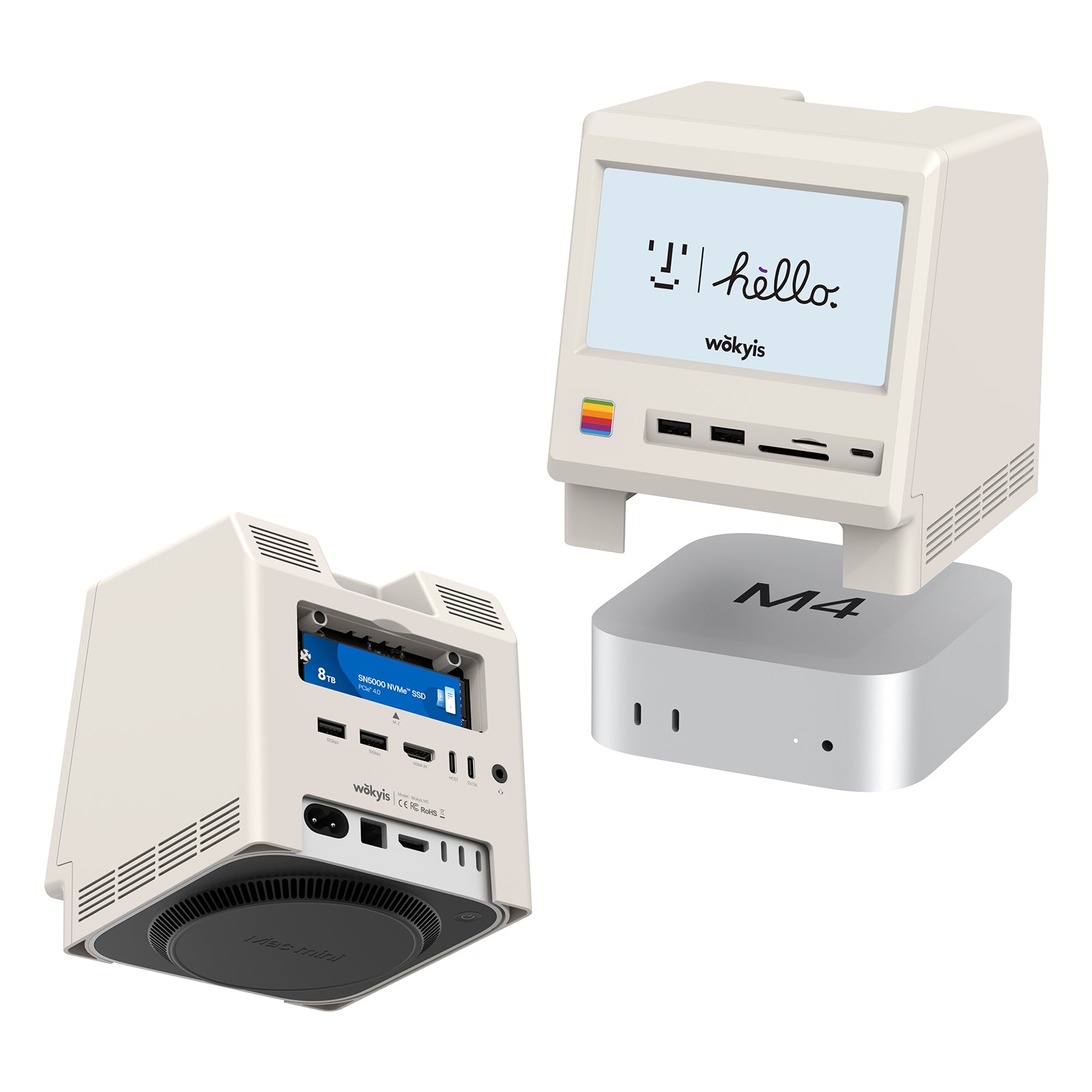

  • Mac mini M4/M4 Pro (both functionality and size are compatible)
  • Mac mini M1/M2/M2 Pro (functionality is compatible, but size is not)
  • Mac Studio M3 Ultra/M4 Max (functionality is compatible, but size is not)
  • MacBook Air M4/M5, MacBook Pro M4/M4 Pro/M4 Max, MacBook Pro M5/M5 Pro/M5 Max (functionality is compatible, but size is not)
  • Other Mac models and Windows computers with Thunderbolt 5/4/3 port or USB4 port (functionality is compatible, but size is not)
In stock, ready to ship

Pairs well with

Free Shipping Over $49

100% Secure Gateway

12-Month Warranty Time

Lifetime Technical Support

Product Details

Technical Specs

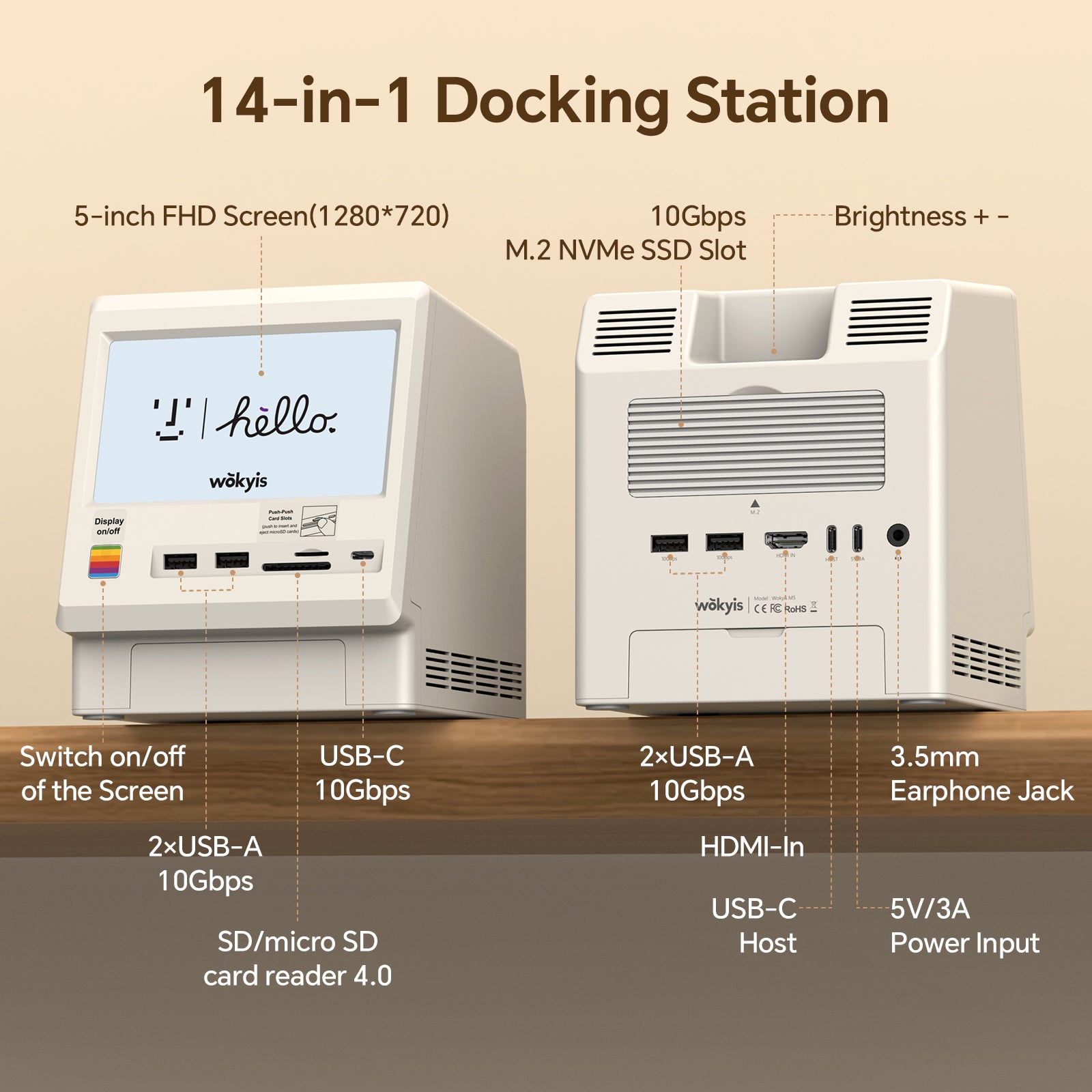

Interfaces：

  • Power Button: switch on/off of the 5-inch screen
  • 5-inch Monitor: HD display, resolution up to 1280*720p, IPS

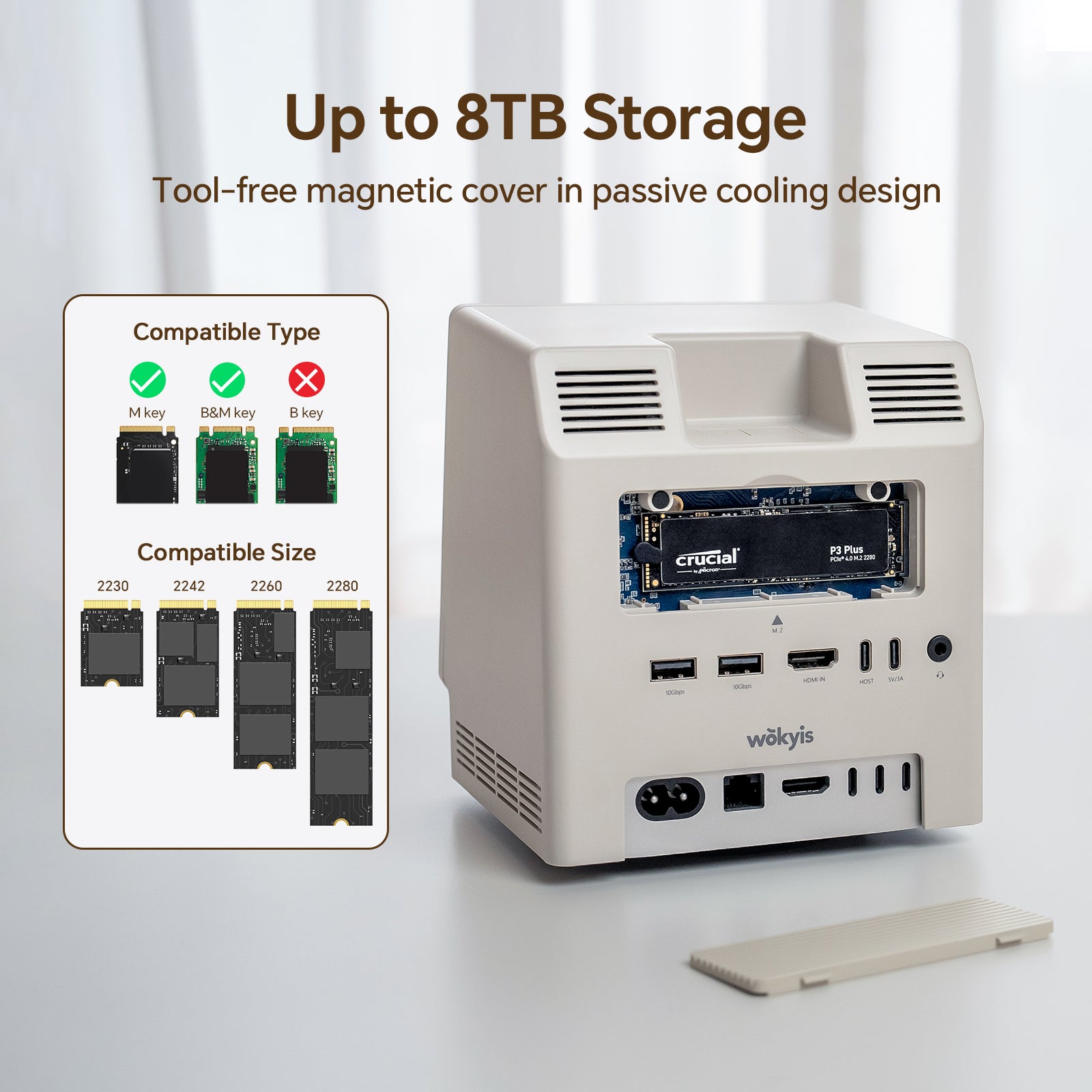

  • M.2 SSD Slot: supports 2230/2242/2260/2280, NVMe, PCIe 4.0 and 5.0, capacity up to 8TB, speeds up to 10Gbps
  • SD/micro Card Readers: SD4.0 UHS-ll 312MB/s, SD and microSD card readers can be used simultaneously
  • 4x USB-A Ports: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah
  • 1x USB-C Port: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah
  • 1x USB-C Host: connect to Mac mini M4/M4 Pro
  • 1x USB-C Port: connect to external power supply when needed, 15W (5V/3A)
  • 1x Audio Port: 3.5mm earphone jack, USB 2.0, 8K-384K support 32bit input and output
  • 1x HDMI Port: HDMi-in only
Dimensions and Weight

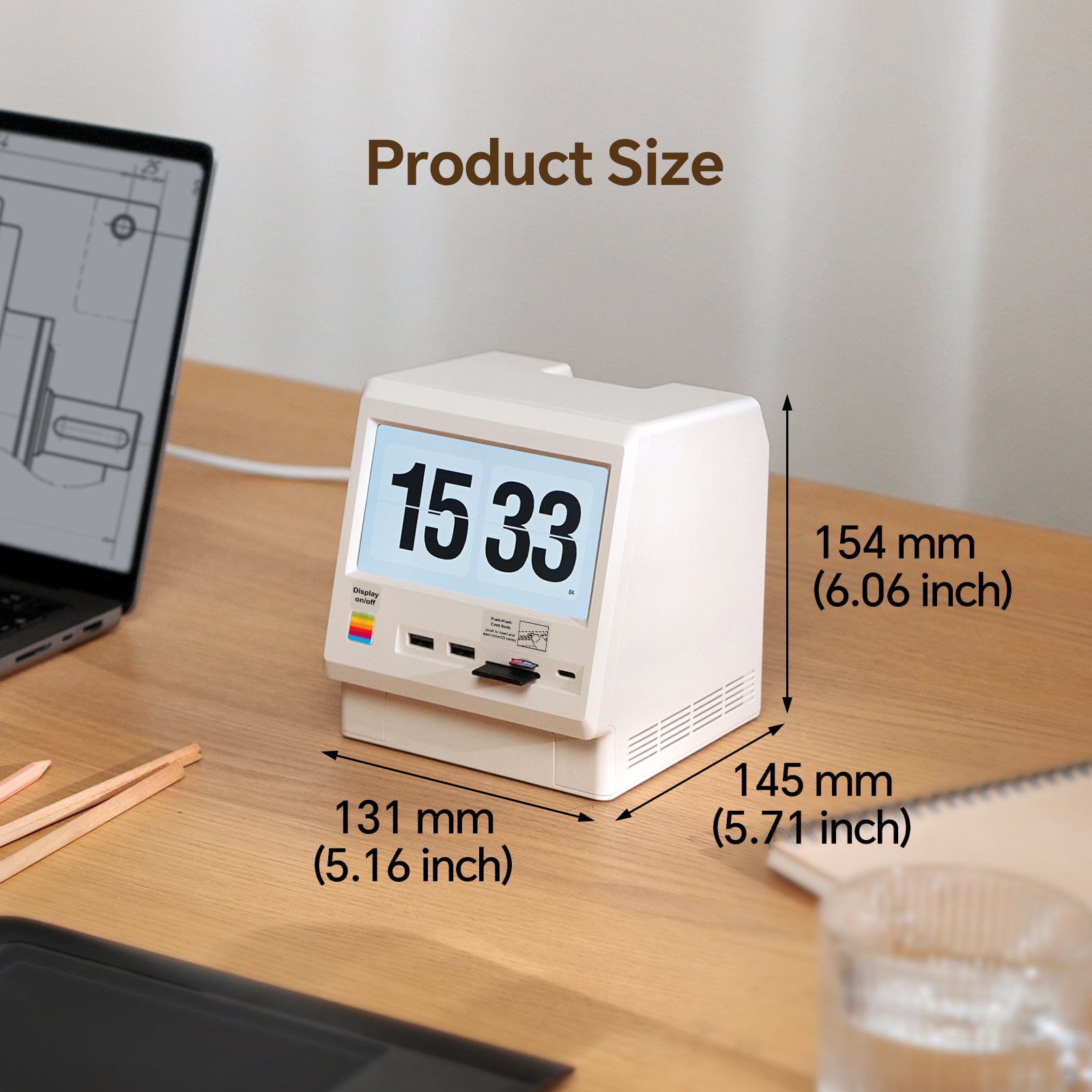

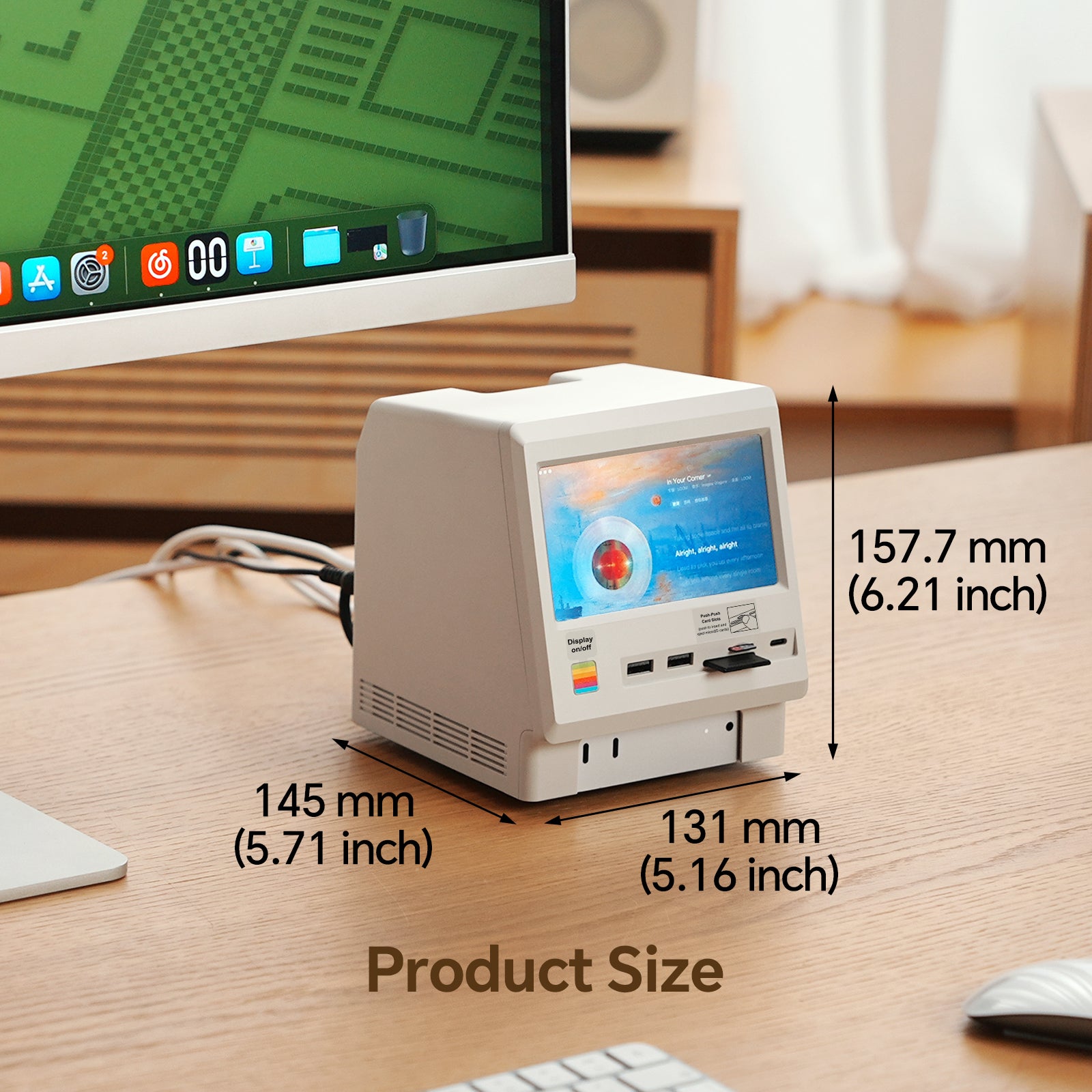

Dimensions:

  • 145*131*154mm, 5.71*5.16*2.13inches

Weights:

  • 510g, 1.12Ibs, 17.99oz

Materials:

  • Plastic (main body)
  • Aluminum (SSD protective cover)

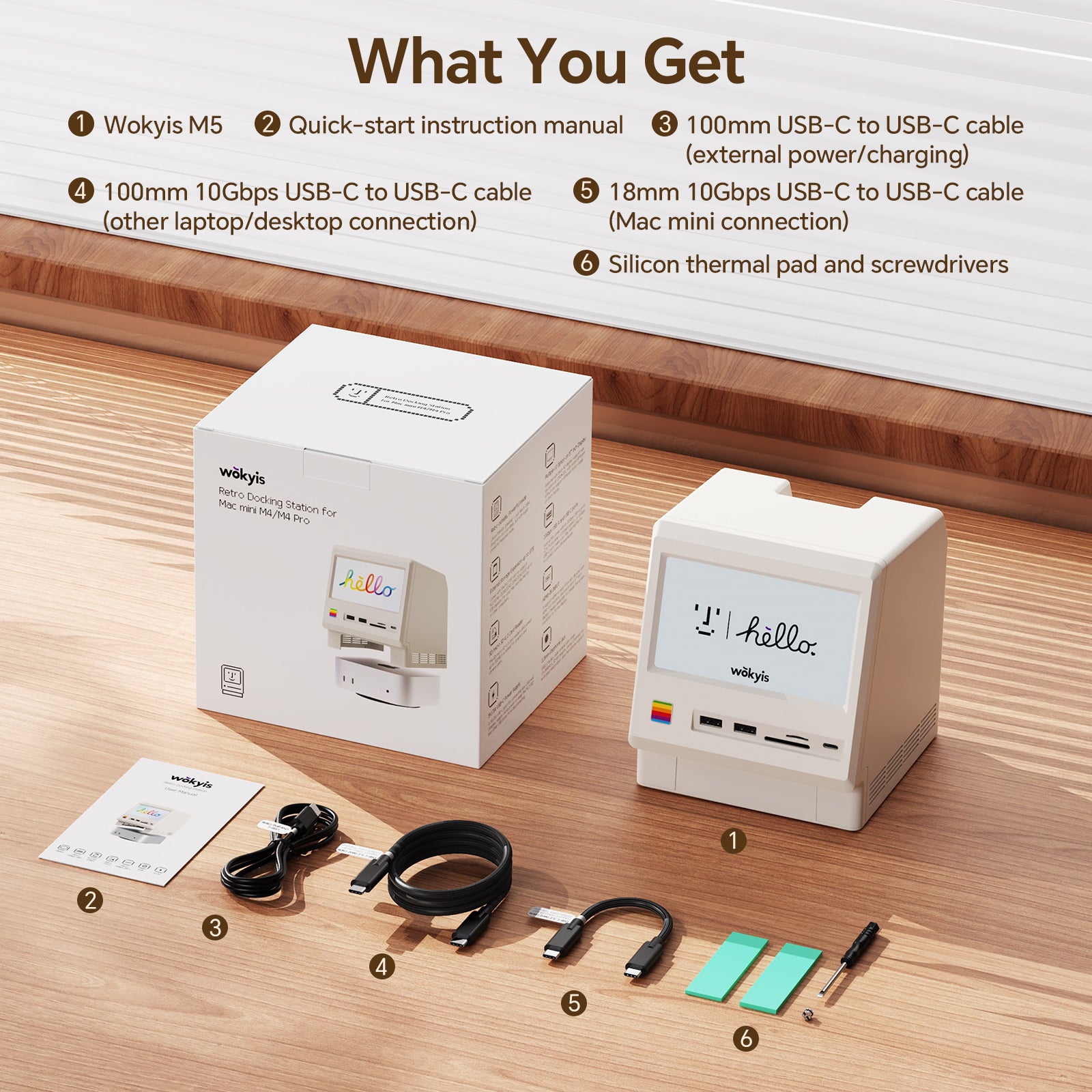

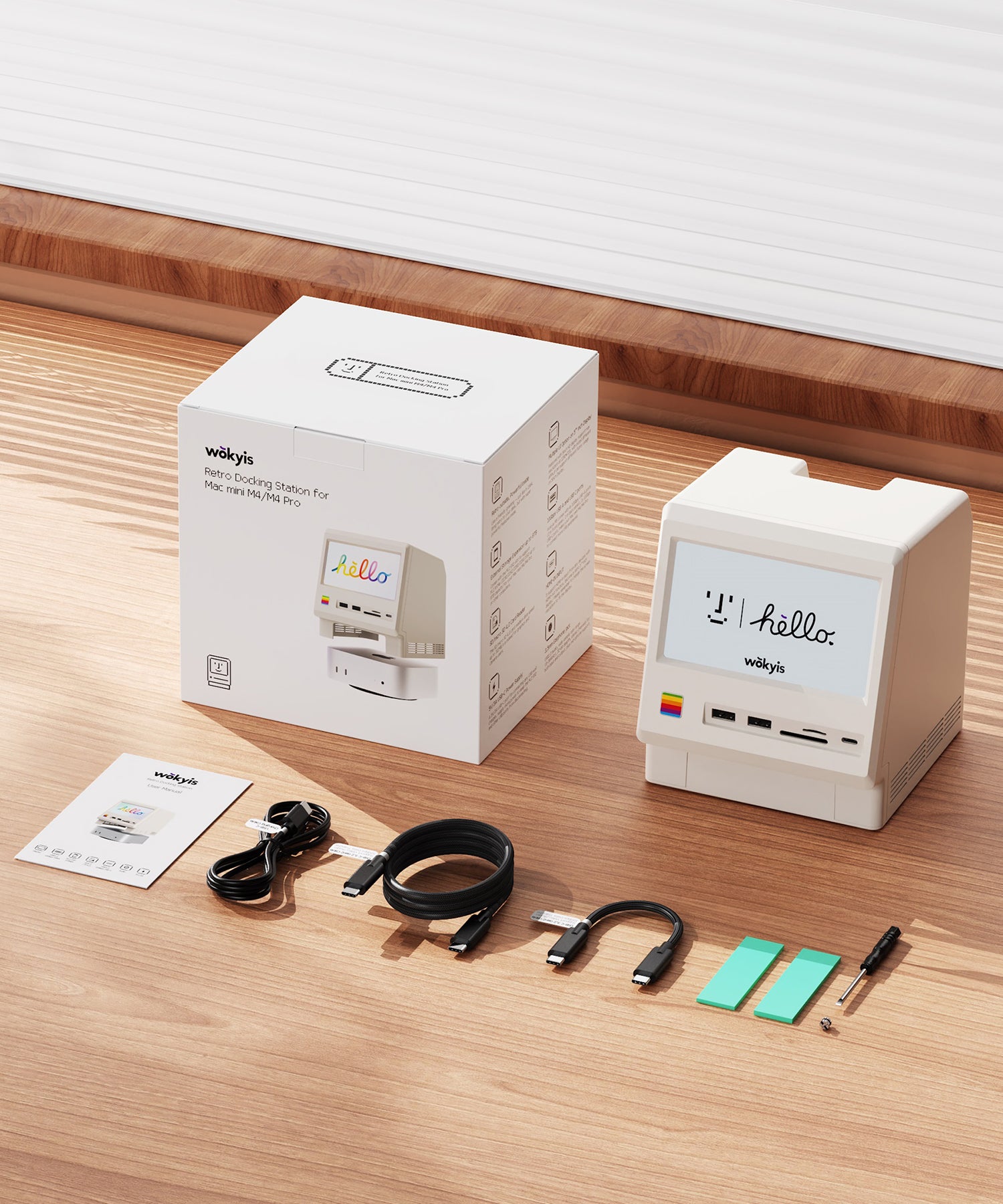

Packing List and Accessory
  • 1x Wokyis M5 10Gbps
  • 1x USB-C cable: connect to Mac mini M4/M4 Pro, 18mm, USB 3.2 Gen2 10Gbps
  • 1x USB-C cable: connect to other Macs or Windows computers with Thunderbolt 5/4/3 ports or USB4 port, 1 meter, USB 3.2 Gen2 10Gbps
  • 1x USB-C cable: connect to external power supply when needed, 1 meter, 15W (5V/3A)
  • Screw/Screwdriver
  • Silocone Thermal Pad
  • User Manual
Recommended NVMe SSDs
  • Crucial: T710/T705/T500, P510/P310, P5/P5 Plus, P3/P3 Plus, P2/P2 Plus
  • Corsair: MP700 Elite/MP700 PRO, MP600 Elite/MP600 CORE XT/MP600 PRO NH
  • Fury: Fury Renegade, Fury Renegade G5
  • Lexar: NM1090 PRO, NM790/NM760/NM710, NQ790/NQ780//NQ71
  • Kingston: NV3, NV2, NV1, DC1000B, KC3000
  • Samsung: 9100 Pro, 990 Pro/990 EVO/990 EVO Plus, 980 Pro/980, 970 Pro/970 EVO/970 EVO Plus/970
  • Seagate: BarraCuda Q5/510, FireCuda 520/510, IronWolf 525, ZP1000GP3A1011/ZP2000GP3A1001
  • SK Hynix: Platinum P51, Platinum P41, Gold P31
  • Silicon Power: UD90, US75, A60
  • TEAMGROUP: T-Force Z540, T-Force G50, MP44L, MP33/MP33 PRO
  • Western Digital: Black SN8100/SN850X/SN850, Black SN7100/SN770/SN750, Blue SN5000, SN580/SN570/SN550, Green SN350, Red SN700

Transformative Innovation

Mega Perform, Retro Design

10Gbps Retro Dock

Making It More Interesting

Load video:

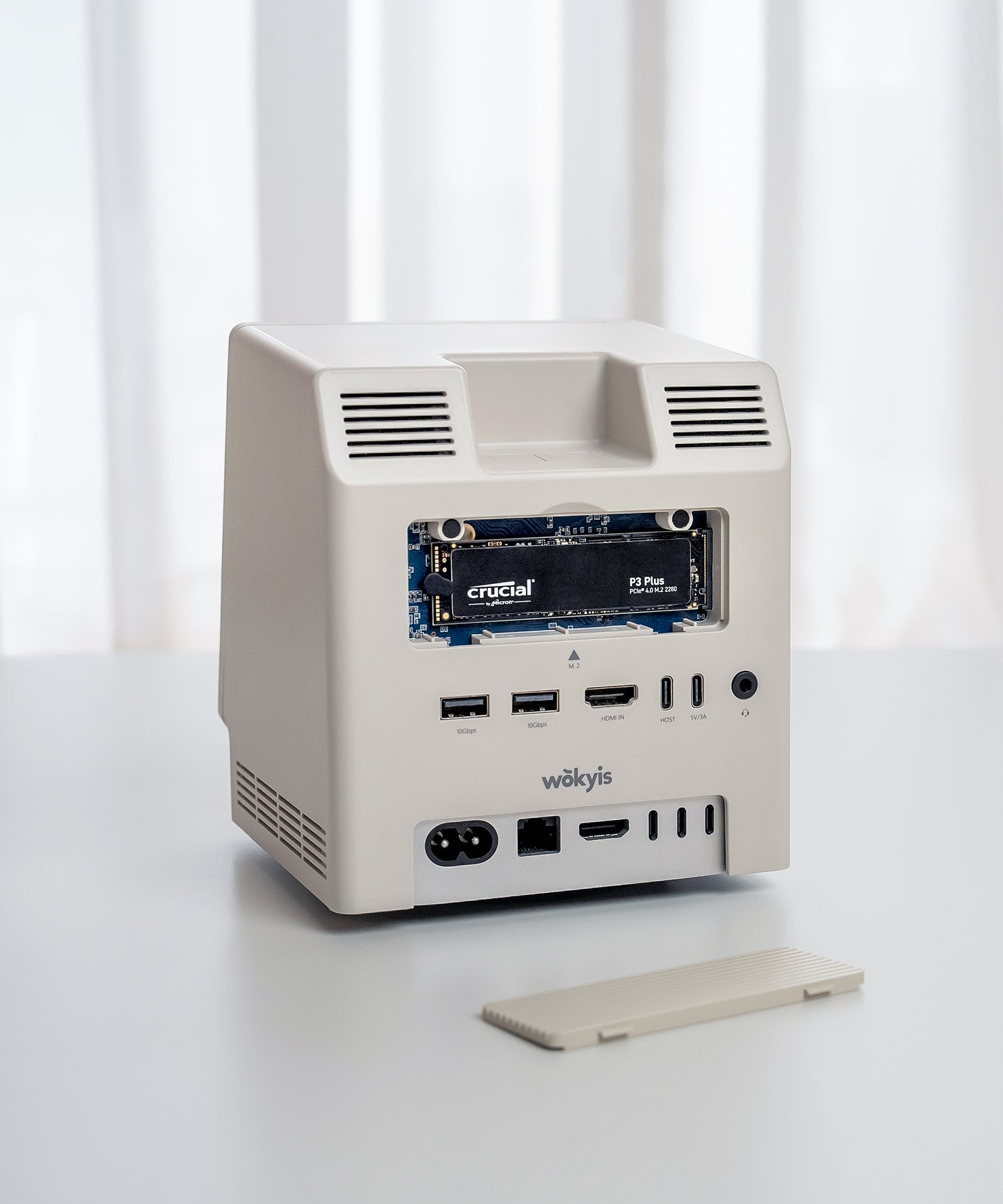

NVMe SSD Installation

How to Install and Format M.2 PCIe NVMe SSD

Load video:

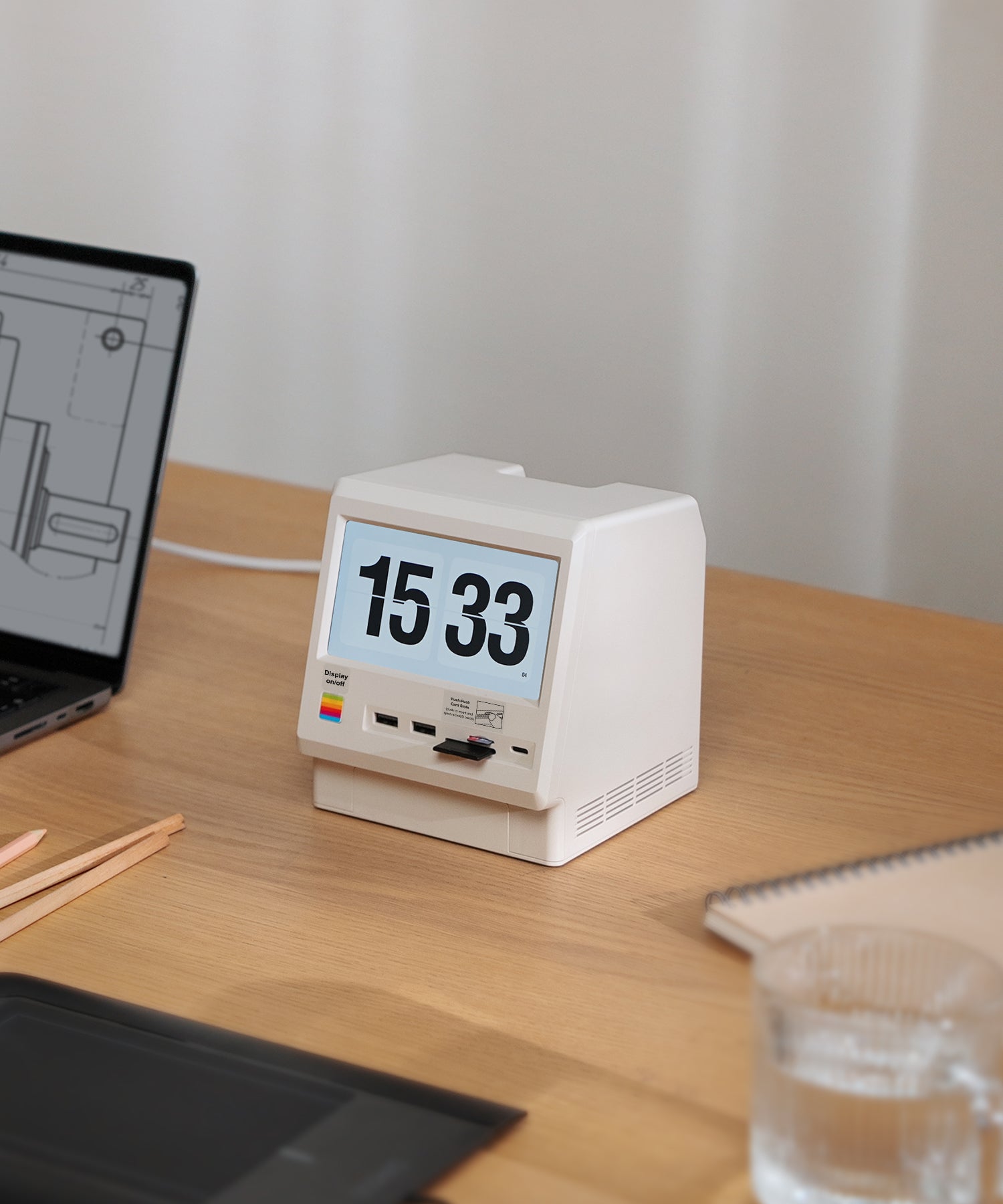

Set Up Flip Clock

How to Install and Move Flip Clock to Wokyis
